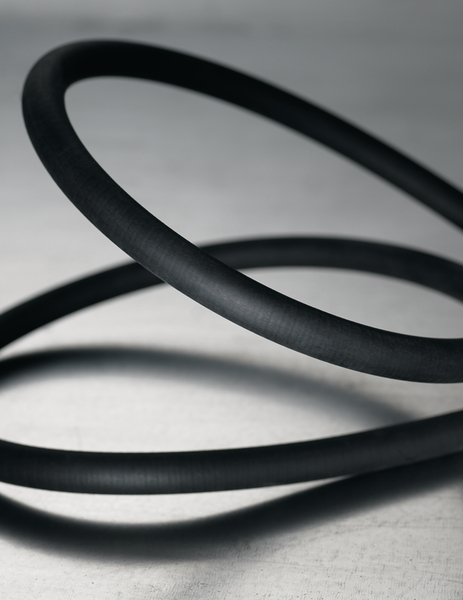

LTSH Galvanised Steel Conduit with Thermoplastic Cover black ø50mm reel 10m
Art.-No. 166-32007 | LTSH50-GS/TPR-BK Details

  • Liquid-tight (IP68 and IP69k with LTS fittings)
  • Flame-retardant
  • High compression, tensile and impact strength
  • Good flexibility
  • Smooth outer cover does not wrinkle when bent
  • Good resistance to acids, petrol, oils and greases
  • UV-resistant, suitable for outdoor use
  • Colour: black
Show more

Request your individual offer now

Application Machine tools or outdoor installations wherever flame retardance or low or high temperature resistance is required.
Colour Black (BK)
Conduit Model with smooth TPR coating
Material Galvanised Steel (GS), Thermoplastic Rubber (TPR)
PART DESCRIPTION LTSH50-GS/TPR-BK
Pack Cont. 10m
Package Content packed in Reel
Product Family LTSH Galvanised Steel Conduit, Thermoplastic Cover
Product Group Metallic conduits with liquid-tight cover
Short Description LTSH Galvanised Steel Conduit with Thermoplastic Cover black ø50mm reel 10m
Type LTSH50

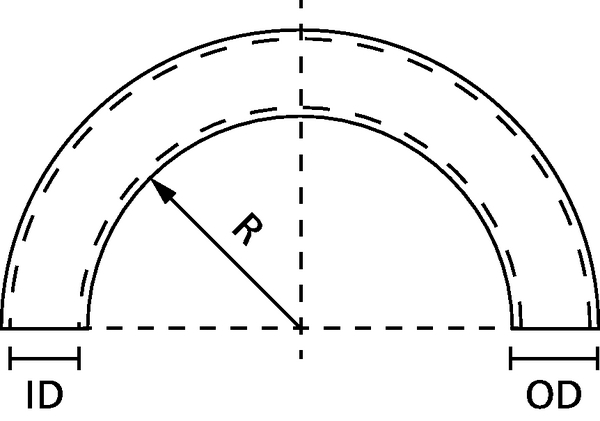

Bending Radius min. (R) 230mm
Diameter (D) 40.4mm
Inside Ø (ID) 40.4mm
Nominal ∅ 50mm
Nominal ∅ (imperial) 2"
Outside Ø (OD) 47.9mm
Weight 1071g/m
Weight/Unit 0.7016kg
CE Certification Yes
ELV compliant Dir. Art. 4 (2) YES
EN61386 Classification 445440684410
Electrical characteristics Not specified
Halogen-free Yes
Hazardous Goods No
IP-Rating IP69k, IP68
Operating Temperature -60 °C to +150 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 83071000
GTIN-13 / EAN 4031026307978
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.67m
Packaging 1 - Qty 10
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.06734
Packaging 1 - Weight (kg) 7.016kg
Packaging 1 - Width (m) 0.67m
Packaging 3 - Height (m) 1.12m
Packaging 3 - Length (m) 1.2m
Packaging 3 - Qty 70
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 1.0752
Packaging 3 - Weight (kg) 53.312kg
Packaging 3 - Width (m) 0.8m
Packaging 4 - Height (m) 1.264m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 70
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.213
Packaging 4 - Weight (kg) 74.312kg
Packaging 4 - Width (m) 0.8m
Reel Length 10m
ETIM 7.0 Key EC001179
ETIM 8.0 Key EC001179
ETIM 9.0 Key EC001179
