14/04/2024

Fitting for metallic conduits with Swivel Thread Compression Fitting IP65 ø12mm M16
Art.-No. 166-31500 | PCS12-SMC-M16-NPB/PA6/PS-ML Details

  • Multipart compression fitting including elastomeric seal
  • Provides excellent tensile strength
  • External thread swivels about main body even after tightening

Request your individual offer now

Application External thread, nickel plated brass with internal plated steel circlip. Fulfils IP65.
Colour Metal (ML)
Material Nickel Plated Brass (NPB), Polyamide 6 (PA6), Plated Steel (PS)
Metallic Fitting Type Compression, straight
Pack Cont. 10pcs.
Package Content packed in Bag
PART DESCRIPTION PCS12-SMC-M16-NPB/PA6/PS-ML
Product Family PCS-SMC Swivel Thread Compression Fitting, IP65
Product Group Fittings for metallic conduits with plastic coating
Short Description Fitting for metallic conduits with Swivel Thread Compression Fitting IP65 ø12mm M16
Thread type metric
Type of connection Thread
Variant Straight

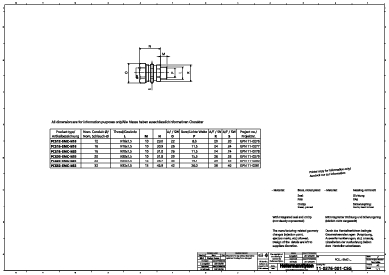

A/F Inner Nut (A/F4) 24mm
A/F Nut (A/F3) 22mm
A/F Thread (A/F2) 20mm
Height (H) 22mm
Length (L) 39.0mm
Lowest inner diameter 8.6mm
Min. Bore Size (B) 8.6mm
Nominal ∅ 12mm
Nominal ∅ (imperial) 0.5"
Thread Length (TL) 10.0mm
Thread Size M16
Weight/Unit 0.049101kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy < 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP65
Operating Temperature -50 °C to +135 °C
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026307572
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00074
Packaging 1 - Weight (kg) 0.491011kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 160
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 8.156176kg
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001180
ETIM 8.0 Key EC001180
ETIM 9.0 Key EC001180
