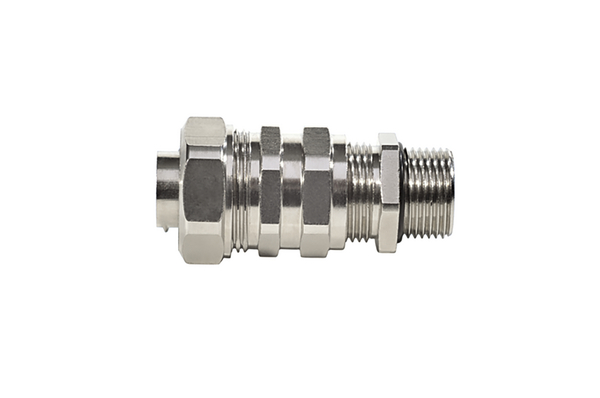

Straight Fitting for metallic conduits with Cable Gland IP65 ø16mm M16
Art.-No. 166-36101 | PCS16-SCG-M16-PA66/NPB/TPE-ML Details

  • Multipart compression fitting including elastomeric seal
  • Powerful strain relief function
  • Seals cable at IP68 and IP69k
  • Provides excellent tensile strength

Request your individual offer now

Application External thread, nickel plated brass. Fulfils IP65.
Cable ∅ max 10mm
Cable ∅ min 4.5mm
Colour Metal (ML)
Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE)
Metallic Fitting Type Cable gland
PART DESCRIPTION PCS16-SCG-M16-PA66/NPB/TPE-ML
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family PCS-SCG Straight Cable Gland fitting, IP65
Product Group Fittings for metallic conduits with plastic coating
Short Description Straight Fitting for metallic conduits with Cable Gland IP65 ø16mm M16
Thread type metric
Type PCS16-SCG-M16
Type of connection Thread
Variant Straight

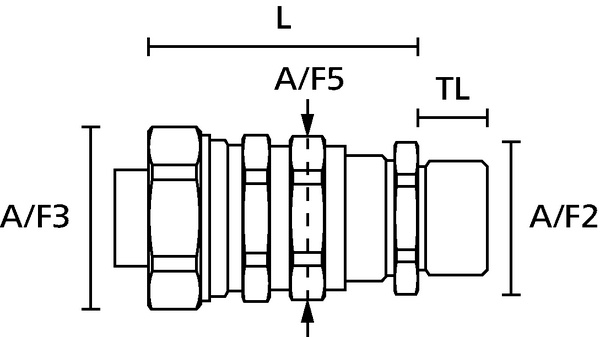

A/F Gland Body (A/F5) 22mm
A/F Nut (A/F3) 26mm
A/F Thread (A/F2) 20mm
Length (L) 55mm
Min. Bore Size (B) 10.0mm
Nominal ∅ 16mm
Nominal ∅ (imperial) 0.63"
Thread Length (TL) 12.0mm
Thread Size M16
Weight/Unit 0.080828kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP65
Operating Temperature -50 °C to +135 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026408453
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0011
Packaging 1 - Weight (kg) 0.808281kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 100
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 8.38281kg
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001180
ETIM 8.0 Key EC001180
ETIM 9.0 Key EC001180
