Fitting for metallic conduit with Swivel External Thread IP54 ø16mm M16
Art.-No. 166-31102 | PCS16-SM-M16-NPB/PS-ML Details

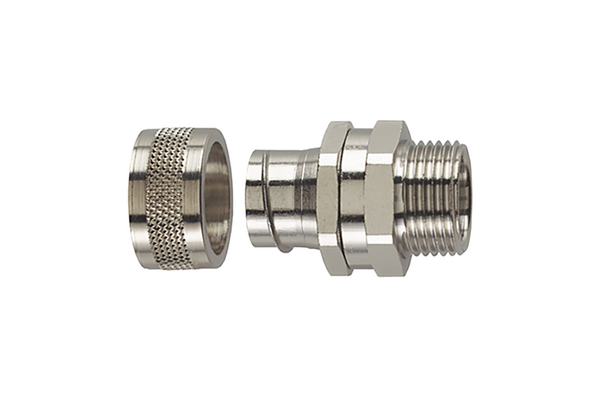

  • Multi-part metallic-fitting of shell and body with external thread
  • External thread swivels about main body
  • Provides tight, reliable hold of conduit
  • Can be secured with locknut

Request your individual offer now

Application Swivel external thread, nickel plated brass with internal steel circlip.
Colour Metal (ML)
Material Nickel Plated Brass (NPB), Plated Steel (PS)
Metallic Fitting Type Standard
PART DESCRIPTION PCS16-SM-M16-NPB/PS-ML
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family PCS-SM Swivel External Thread, IP54
Product Group Fittings for metallic conduits with plastic coating
Short Description Fitting for metallic conduit with Swivel External Thread IP54 ø16mm M16
Thread type metric
Type PCS16-SM-M16
Type of connection Thread
Variant Straight

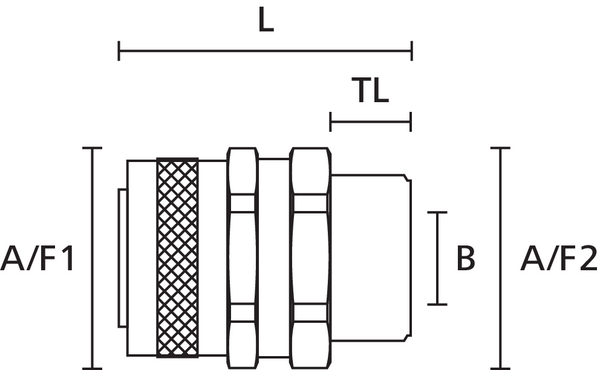

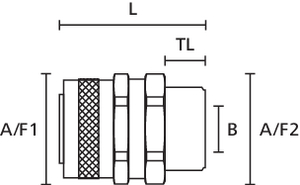

A/F Thread (A/F2) 20mm
Height (H) 20.0mm
Length (L) 34.2mm
Lowest inner diameter 11.5mm
Min. Bore Size (B) 11.5mm
Nominal ∅ 16mm
Nominal ∅ (imperial) 0.63"
Thread Length (TL) 10.0mm
Thread Size M16
Weight/Unit 0.035572kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP54
Operating Temperature -100 °C to +300 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026307138
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00074
Packaging 1 - Weight (kg) 0.355721kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001180
ETIM 8.0 Key EC001180
ETIM 9.0 Key EC001180
