Fitting for metallic conduits, nom⌀20mm, metal, 10pcs.
Art.-No. 166-31700 | PCS20-PCS20-NPB/PA6-ML |

Copied

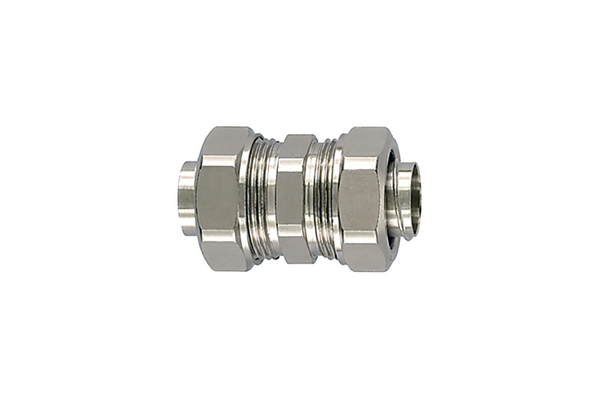

HelaGuard PCS-PCS Compression Coupler.
HelaGuard compression coupler

    • Multipart compression coupler including polyamide seal
    • Joins two conduits
    • Provides excellent tensile strength
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Nickel plated brass.
    Fulfils IP65.
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    Metallic Fitting Type Coupler
    PART DESCRIPTION PCS20-PCS20-NPB/PA6-ML
    Package Content 10pcs.
    Package Content packed in Bag
    Product Family PCS-PCS Compression Coupler, IP65
    Product Group Fittings for metallic conduits with plastic coating
    Short Description Elbow Compression Fitting IP65 ø20mm
    Type PCS20-PCS20
    Type of connection Thread
    Variant Straight
    Weight/Unit 0.081kg

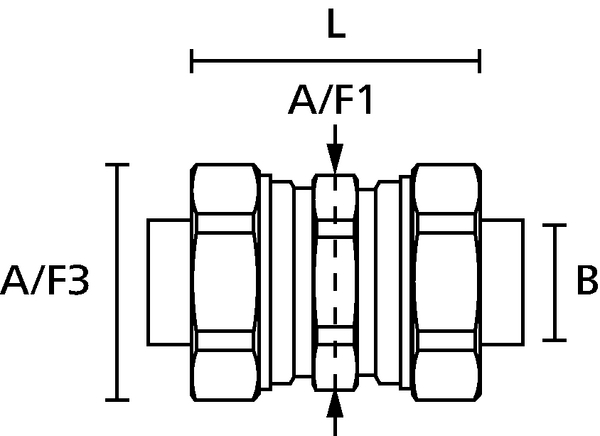

    A/F Nut (A/F3) 29mm
    Length (L) 39.5mm
    Min. Bore Size (B) 15.3mm
    Nominal ⌀ 20mm
    Nominal ⌀ (imperial) 0.81"
    CAS Number 7439-92-1
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP65
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026307701
    Packaging 1 - Height (m) 0.029m
    Packaging 1 - Length (m) 0.19m
    Packaging 1 - Qty 10
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0008816m³
    Packaging 1 - Weight (kg) 0.810001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001172
    ETIM 8.0 Key EC001172
    ETIM 9.0 Key EC001172
