Fittings for metallic conduits with plastic coating : PCS32-FM-PG29

Fitting for metallic conduit with Fixed External Thread IP54 ø32mm PG29, Article number: 166-31016

HelaGuard PCS-FM Fixed External Thread.

Features

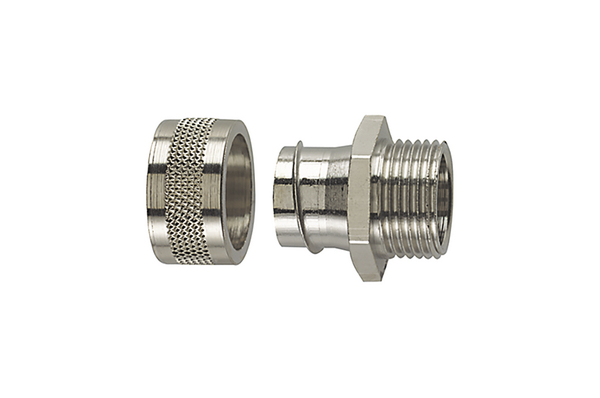

  • Two-part fitting of shell and body with external thread
  • Provides tight, reliable hold of conduit
  • Can be secured with locknut

Certifications & Approvals

Application

Fixed external thread, nickel plated brass.

PCS-FM Fixed External Thread, IP54 is suitable for following markets and industries

Colour Metal (ML)
Features and Benefits Fixed external thread, nickel plated brass.
Metallic Fitting Type Standard
Pack Cont. 2pcs.
Package Quantity per Bag
PART DESCRIPTION PCS32-FM-PG29-NPB-ML
Product Family PCS-FM Fixed External Thread, IP54
Product Group Fittings for metallic conduits with plastic coating
Short Description Fitting for metallic conduit with Fixed External Thread IP54 ø32mm PG29
Thread type PG
Type of connection Thread
Variant Straight

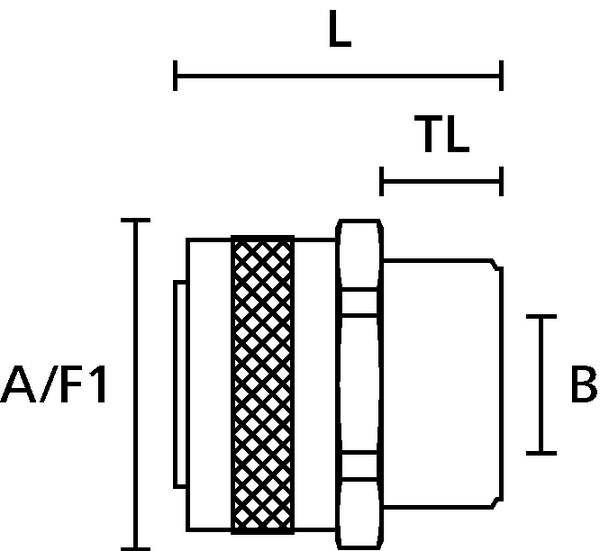

Height (H) 38.0mm
Length (L) 36.8mm
Lowest inner diameter 26.2mm
Min. Bore Size (B) 26.2mm
Nominal ∅ 32mm
Nominal ∅ (imperial) 1-1/4"
Thread Length (TL) 13.0mm
Thread Size PG29
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP54
Material Nickel Plated Brass (NPB)
Operating Temperature - °C -100 °C to +300 °C
Specifications
EAN / GTIN 4031026307077
Packaging 1 - Height (m) 0.038m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 2
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00116
Packaging 1 - Weight (kg) 0.26kg
Packaging 1 - Width (m) 0.16m
Weight 0.26kg
ETIM 6.0 EC001180
ETIM 7.0 Key EC001180
