Fittings for metallic conduits with plastic coating PCS40-EI

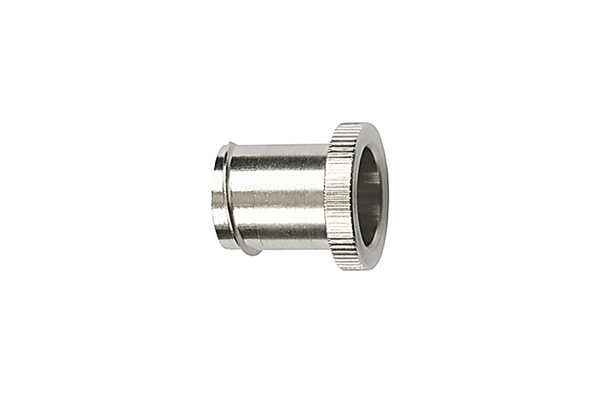

PCS-EI End Insert, Article number: 166-31806

HelaGuard PCS-EI End Insert.

Features

  • Single part
  • Caps end of conduit

Certifications & Approvals

Application

Nickel plated brass.

PCS-EI End Insert is suitable for following markets and industries

Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Metallic End Insert ø40mm
Features and Benefits Nickel plated brass.
Metallic Fitting Type End insert
Pack Cont. 2pcs.
Package Quantity per Bag
PART DESCRIPTION PCS40-EI-NPB-ML
Product Family PCS-EI End Insert
Product Group Fittings for metallic conduits with plastic coating
Type of connection Thread
Variant Straight
Height (H) 9.0mm
Length (L) 28.0mm
Min. Bore Size (B) 34.6mm
Nominal ∅ 40mm
Nominal ∅ (imperial) 1-9/16"
Outside ∅ max (OD max.) 47.5mm
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP65
Material Nickel Plated Brass (NPB)
Operating Temperature - °C -100 °C to +300 °C
Specifications
EAN / GTIN 4031026307787
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 2
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00137
Packaging 1 - Weight (kg) 0.124kg
Packaging 1 - Width (m) 0.16m
Weight 0.124kg
ETIM 6.0 EC001180
ETIM 7.0 Key EC001180
