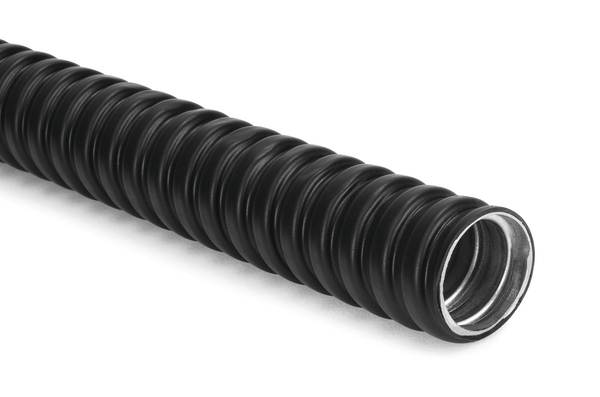

PCS Galvanised Steel Conduit with PVC Coating black ø50mm reel 25m
Art.-No. 166-30707 | PCS50-GS/PVC-BK Details

  • High compression, tensile and impact strength
  • Very flexible
  • Good resistance to alkalis and acids
  • Good resistance to chemicals
  • Colour: black, grey
Show more

Request your individual offer now

Application Flexible galvanised steel conduit with PVC coating, typically used in machine and plant construction and electrical installations.
Application Tool CONCLAMP
Colour Black (BK)
Conduit Model with PVC coating
Material Galvanised Steel (GS), Polyvinylchloride (PVC)
PART DESCRIPTION PCS50-GS/PVC-BK
Pack Cont. 25m
Package Content packed in Reel
Product Family PCS Galvanised Steel Conduit, PVC Coating
Product Group Metallic conduits with plastic coating
Short Description PCS Galvanised Steel Conduit with PVC Coating black ø50mm reel 25m
Type PCS50

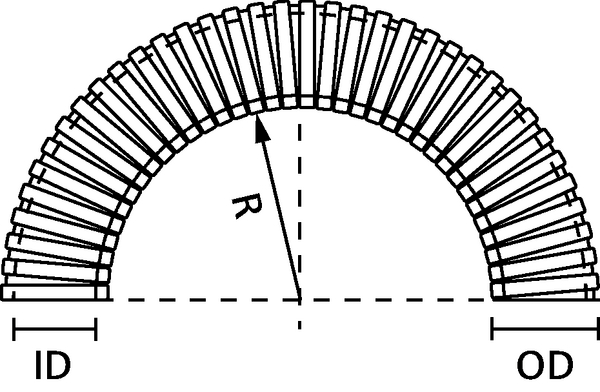

Bending Radius min. (R) 90mm
Diameter (D) 48.0mm
Inside Ø (ID) 48.4mm
Length (L) 25m
Nominal ∅ 50mm
Nominal ∅ (imperial) 2"
Outside Ø (OD) 55.0mm
Weight 1052g/m
Weight/Unit 1.1048kg
CE Certification Yes
ELV compliant Dir. Art. 4 (2) YES
EN61386 Classification 443140652410 (with compression fittings)
Electrical characteristics Not specified
Hazardous Goods No
IP-Rating IP66 (in conjunction with HG fittings)
Operating Temperature -15 °C to +70 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 83071000
GTIN-13 / EAN 4031026306780
Packaging 1 - Height (m) 0.24m
Packaging 1 - Length (m) 0.7m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.1176
Packaging 1 - Weight (kg) 27.62kg
Packaging 1 - Width (m) 0.7m
Packaging 3 - Type Carton
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 163.36kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
ETIM 7.0 Key EC001179
ETIM 8.0 Key EC001179
ETIM 9.0 Key EC001179
