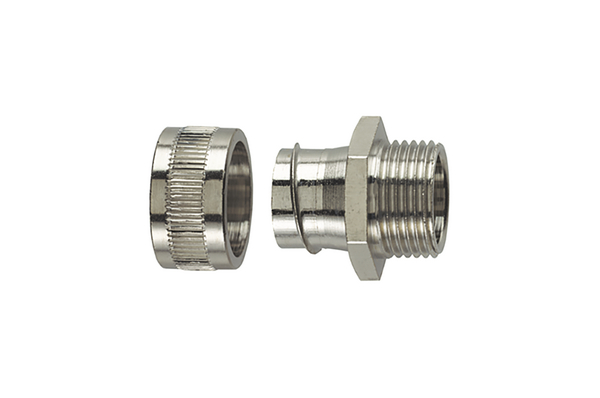

Fitting for metallic conduits with Fixed External Thread ø12mm M16
Art.-No. 166-30301 | SC12-FM-M16-NPB-ML Details

  • Multi-part fitting of shell and body with external thread
  • Provides tight, reliable hold of conduit
  • Can be secured with locknut

Request your individual offer now

Application Fixed external thread, nickel plated brass.
Colour Metal (ML)
Material Nickel Plated Brass (NPB)
Metallic Fitting Type Standard
PART DESCRIPTION SC12-FM-M16-NPB-ML
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family SC-FM Fixed External Thread
Product Group Fittings for metallic conduits
Short Description Fitting for metallic conduits with Fixed External Thread ø12mm M16
Thread type metric
Type SC12-FM-M16
Type of connection Thread
Variant Straight

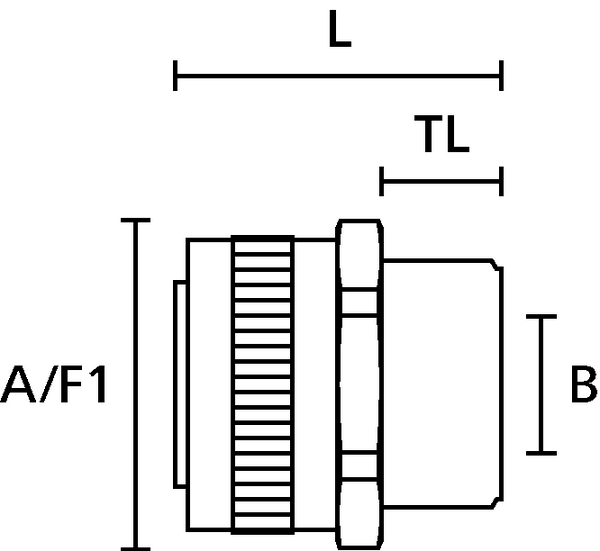

Length (L) 23.0mm
Lowest inner diameter 8.5mm
Min. Bore Size (B) 8.5mm
Nominal ∅ 12mm
Nominal ∅ (imperial) 0.5"
Thread Length (TL) 10.0mm
Thread Size M16
Weight/Unit 0.025kg
CAS Number 7439-92-1
CE Certification Yes
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP40
Operating Temperature -100 °C to +300 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026306049
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.17m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00054
Packaging 1 - Weight (kg) 0.250001kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 180
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 4.800018kg
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001180
ETIM 8.0 Key EC001180
ETIM 9.0 Key EC001180
