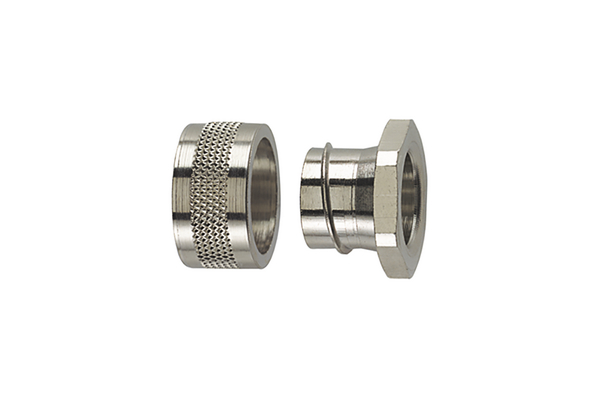

Plain Hole Connector ø40mm
Art.-No. 166-30506 | SC40-PC-NPB-ML Details

  • Two part fitting of shell and body without thread
  • Acts as a locking device
  • The body is fitted to the conduit through the opposite side of the entry
  • Provides a smooth entry bush

Request your individual offer now

Application Plain hole connector, nickel plated brass.
Colour Metal (ML)
Material Nickel Plated Brass (NPB)
PART DESCRIPTION SC40-PC-NPB-ML
Pack Cont. 2pcs.
Package Content packed in Bag
Product Family SC-PC Plain Hole Connector
Product Group Fittings for metallic conduits
Short Description Plain Hole Connector ø40mm
Type SC40-PC
Type of connection Thread
Variant Straight

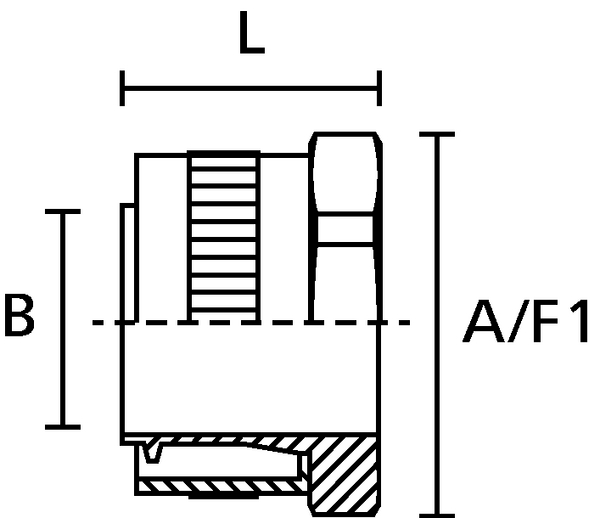

Length (L) 24.8mm
Min. Bore Size (B) 34.2mm
Nominal ∅ 40mm
Nominal ∅ (imperial) 1.56"
Weight/Unit 0.110025kg
CAS Number 7439-92-1
CE Certification Yes
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP40
Operating Temperature -100 °C to +300 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026306636
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 2
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00092
Packaging 1 - Weight (kg) 0.220051kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 28
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 3.380714kg
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001180
ETIM 8.0 Key EC001180
ETIM 9.0 Key EC001180
