08/05/2025

Plain Hole Connector ø12mm
Art.-No. 166-34800 | SCSB12-PC-NPB-ML |

Copied

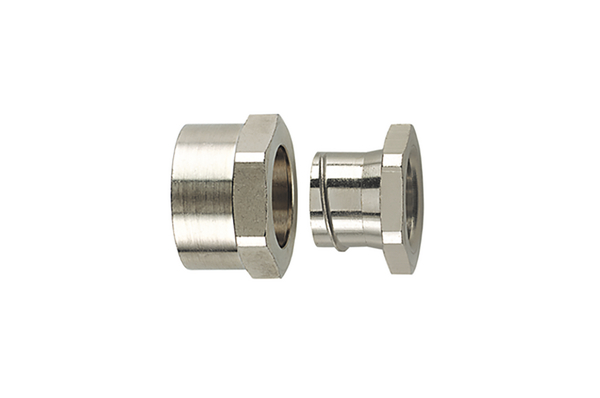

HelaGuard SCSB-PC Plain Hole Connector.

    This product is not available anymore.
    • Two part fitting of shell and body without thread
    • Acts as a locking device
    • The body is fitted to the conduit through the opposite side of the entry
    • Provides a smooth entry bush
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Plain hole connector, nickel plated brass.
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB)
    Metallic Fitting Type Plain hole connector
    PART DESCRIPTION SCSB12-PC-NPB-ML
    Pack Cont. 10pcs.
    Package Content packed in Bag
    Product Family SCSB-PC Plain Hole Connector
    Product Group Fittings for metallic conduits and metallic overbraid
    Short Description Plain Hole Connector ø12mm
    Type SCSB12-PC
    Type of connection Thread
    Variant Straight
    A/F Nut (A/F3) 17mm
    Length (L) 18.0mm
    Min. Bore Size (B) 8.5mm
    Nominal ⌀ 12mm
    Nominal ⌀ (imperial) 0.5"
    Weight/Unit 0.016kg
    CAS Number 7439-92-1
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP40
    Operating Temperature -100 °C to +300 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026309507
    Packaging 1 - Height (m) 0.017m
    Packaging 1 - Length (m) 0.19m
    Packaging 1 - Qty 10
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0005168m³
    Packaging 1 - Weight (kg) 0.160001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001180
    ETIM 8.0 Key EC001180
    ETIM 9.0 Key EC001180
