Fitting for metallic conduits and metallic overbraid with Swivel External Thread ø12mm PG9
Art.-No. 166-34707 | SCSB12-SM-PG9-NPB/PS-ML Details

This product is not available anymore.

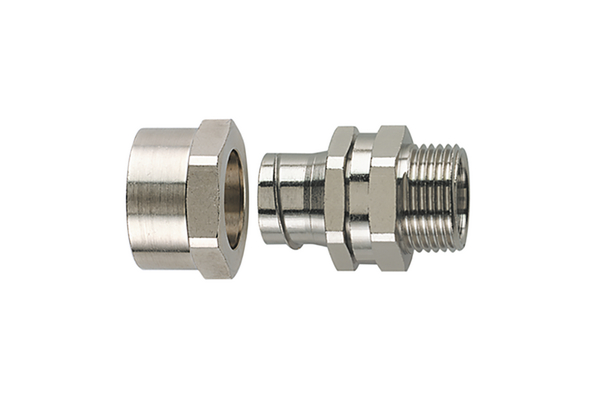

  • Multi-part metallic-fitting of shell and body with external thread
  • External thread swivels about main body
  • Provides tight, reliable hold of conduit
  • Can be secured with locknut

Request your individual offer now

Application Swivel external thread, nickel plated brass with internal steel circlip.
Colour Metal (ML)
Material Nickel Plated Brass (NPB), Plated Steel (PS)
Metallic Fitting Type Standard
Pack Cont. 10pcs.
Package Content packed in Bag
PART DESCRIPTION SCSB12-SM-PG9-NPB/PS-ML
Product Family SCSB-SM Swivel External Thread
Product Group Fittings for metallic conduits and metallic overbraid
Short Description Fitting for metallic conduits and metallic overbraid with Swivel External Thread ø12mm PG9
Thread type PG
Type of connection Thread
Variant Straight

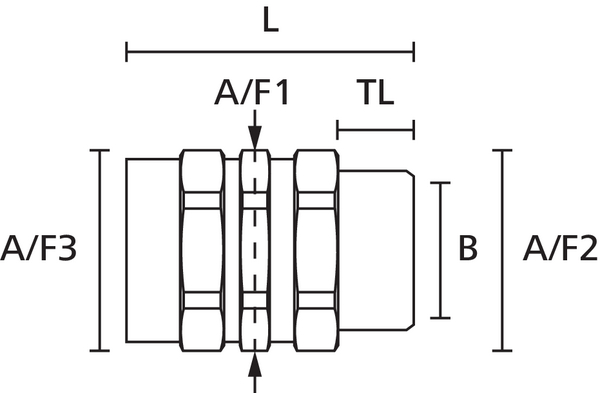

A/F Nut (A/F3) 17mm
A/F Thread (A/F2) 17mm
Length (L) 36.2mm
Min. Bore Size (B) 8.5mm
Nominal ∅ 12mm
Nominal ∅ (imperial) 0.5"
Thread Length (TL) 8.0mm
Thread Size PG9
Weight/Unit 0.029kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy < 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP40
Operating Temperature -100 °C to +300 °C
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026309446
Packaging 1 - Height (m) 0.017m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00052
Packaging 1 - Weight (kg) 0.290001kg
Packaging 1 - Width (m) 0.16m
ETIM 7.0 Key EC001180
ETIM 8.0 Key EC001180
ETIM 9.0 Key EC001180
