Fittings for metallic conduits and metallic overbraid SCSB16-FM-M16

SCSB-FM Fixed External Thread, Article number: 166-34601

HelaGuard SCSB-FM Fixed External Thread.

Features

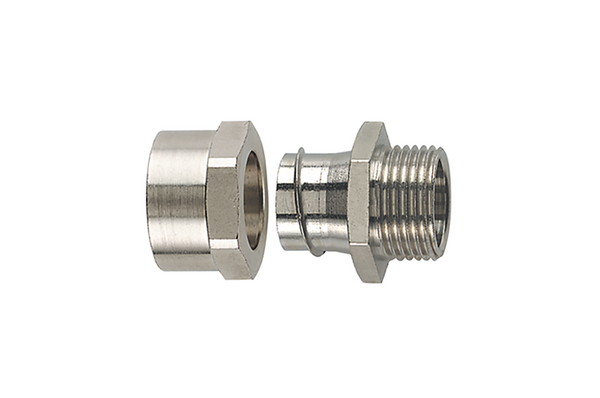

  • Two-part fitting of shell and body with external thread
  • Provides tight, reliable hold of conduit
  • Can be secured with locknut

Certifications & Approvals

Application

Fixed external thread, nickel plated brass.

SCSB-FM Fixed External Thread is suitable for following markets and industries

Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Fitting for metallic conduits and metallic overbraid with Fixed External Thread ø16mm M16
Features and Benefits Fixed external thread, nickel plated brass.
GLOBAL PART DESCRIPTION SCSB16-FM-M16-NPB-ML
Metallic Fitting Type Standard
Pack Cont. 10pcs.
Package Quantity per Bag
Product Family SCSB-FM Fixed External Thread
Product Group Fittings for metallic conduits and metallic overbraid
Thread type metric
Type of connection Thread
Variant Straight

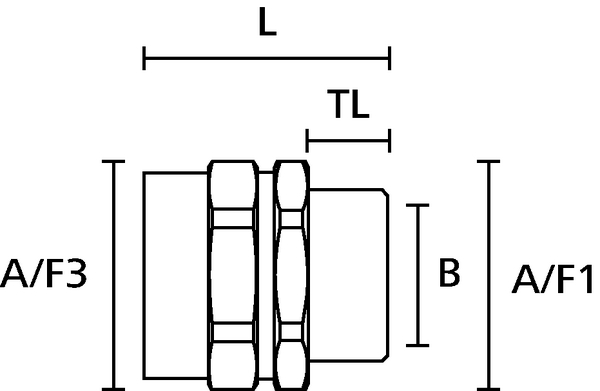

A/F Nut (A/F3) 20mm
Length (L) 28.0mm
Min. Bore Size (B) 11.5mm
Nominal ∅ 16mm
Nominal ∅ (imperial) 5/8"
Thread Length (TL) 10.0mm
Thread Size M16
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP40
Material Nickel Plated Brass (NPB)
Operating Temperature - °C -100 °C to +300 °C
Specifications
EAN / GTIN 4031026309255
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00061
Packaging 1 - Weight (kg) 0.2kg
Packaging 1 - Width (m) 0.16m
Weight 0.2kg
ETIM 5.0 EC001180
ETIM 6.0 EC001180
