Fittings for metallic conduits SSC12-SM-M16

SSC-SM Swivel External Thread, Article number: 166-30420

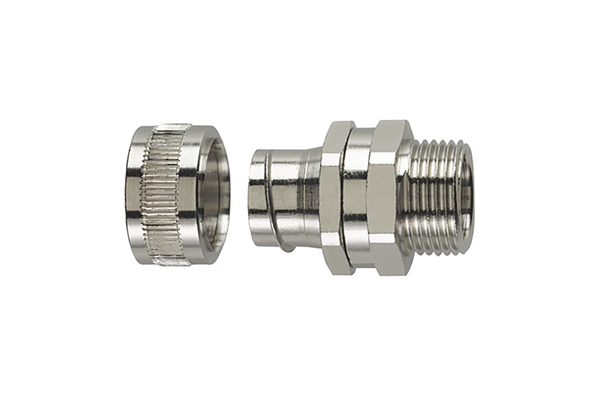

HelaGuard SSC-SM Swivel External Thread.

Features

  • Two-part fitting of shell and body with external thread
  • Highly resistant to rust and corrosion
  • External thread swivels about main body
  • Provides tight, reliable hold of conduit
  • Can be secured with locknut

Certifications & Approvals

Application

Swivel external thread, stainless steel (SS316).

SSC-SM Swivel External Thread is suitable for following markets and industries

Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Fitting for metallic conduits with Swivel External Thread ø12mm M16
Features and Benefits Swivel external thread, stainless steel (SS316).
GLOBAL PART DESCRIPTION SSC12-SM-M16-SS316-ML
Metallic Fitting Type Standard
Pack Cont. 1pc.
Package Quantity per Bag
Product Family SSC-SM Swivel External Thread
Product Group Fittings for metallic conduits
Thread type metric
Type of connection Thread
Variant Straight
A/F Thread (A/F2) 19mm
Height (H) 17mm
Length (L) 32.2mm
Lowest inner diameter 8.5mm
Min. Bore Size (B) 8.5mm
Nominal ∅ 12mm
Nominal ∅ (imperial) 1/2"
Thread Length (TL) 8.0mm
Thread Size M16
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP40
Material Stainless Steel (SS316)
Operating Temperature - °C -100 °C to +600 °C
Specifications
EAN / GTIN 4031026306520
Packaging 1 - Height (m) 0.017m
Packaging 1 - Length (m) 0.155m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00042
Packaging 1 - Weight (kg) 0.03kg
Packaging 1 - Width (m) 0.16m
Weight 0.03kg
ETIM 5.0 EC001180
ETIM 6.0 EC001180
