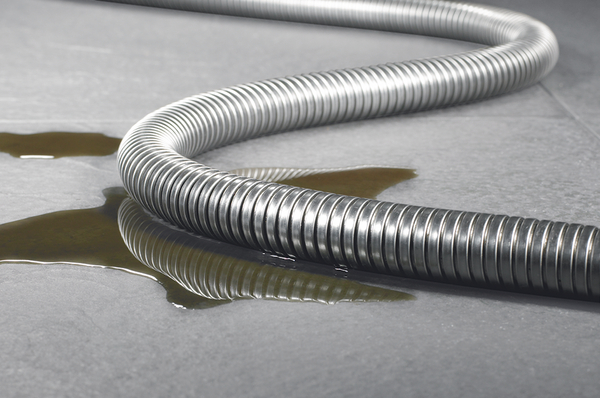

SSC Stainless Steel Conduit ø32mm reel 25m
Art.-No. 166-30205 | SSC32-SS316-ML Details

  • Highly resistant to rust and corrosion
  • High compression, tensile and impact strength
  • Very flexible

Request your individual offer now

Application Stainless steel, corrosion-resistant flexible conduit used for protection of sensor cables, instrumentation tubing, as well as hydraulic and pneumatic hoses, particularly in corrosive environments. Commonly used in hospitals and clinics.
Application Tool CONCLAMP
Colour Metal (ML)
Conduit Model Metallic
Material Stainless Steel (SS316)
Pack Cont. 25m
Package Content packed in Reel
PART DESCRIPTION SSC32-SS316-ML
Product Family SSC Stainless Steel Conduit
Product Group Metallic conduits
Short Description SSC Stainless Steel Conduit ø32mm reel 25m

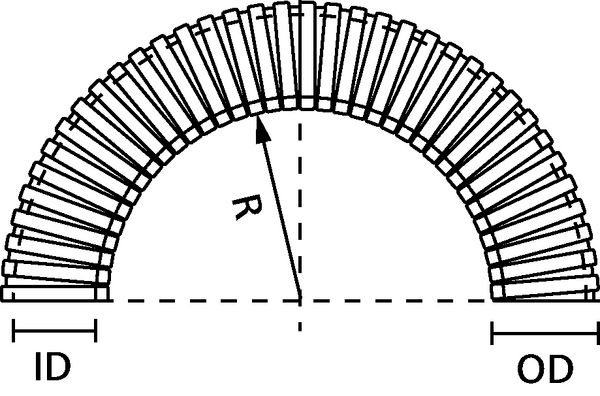

Bending Radius min. (R) 70mm
Diameter (D) 27.8mm
Inside Ø (ID) 28.1mm
Length (L) 25m
Nominal ∅ 32mm
Nominal ∅ (imperial) 1.25"
Outside Ø (OD) 31.7mm
Weight 340g/m
Weight/Unit 0.4kg
CE Certification Yes
Electrical characteristics Not specified
ELV compliant Dir. Art. 4 (2) YES
EN61386 Classification 445640404410
Halogen-free Yes
Hazardous Goods No
IP-Rating IP40
Operating Temperature -100 °C to +600 °C
Specifications
Country of Origin GB
Customs Number 83071000
GTIN-13 / EAN 4031026306001
Packaging 1 - Height (m) 0.23m
Packaging 1 - Length (m) 0.5m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.0575
Packaging 1 - Weight (kg) 10.0kg
Packaging 1 - Width (m) 0.5m
Packaging 3 - Type Carton
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 225
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 142.88kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
EFO Norway block number 040103
ETIM 7.0 Key EC001179
ETIM 8.0 Key EC001179
ETIM 9.0 Key EC001179
