24/10/2025

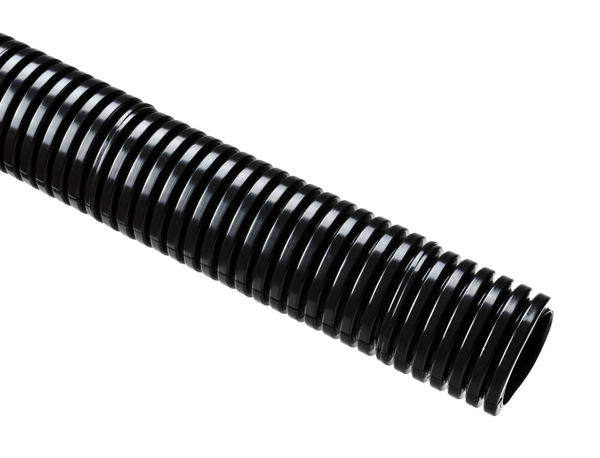

Spiral reinforced conduit, nom⌀21mm, OD=21.2mm, ID=16.0mm, black, 30.48m
Art.-No. 166-90191 | HG-SW0500C-PA6-BK |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Local order number 166-90191
    Material Polyamide 6 (PA6)
    PART DESCRIPTION HG-SW0500C-PA6-BK
    Package Content 30.48m
    Package Content packed in Pack
    Pitch Type coarse
    Type HG-SW0500C
    UV-Stabilised No
    Bending Radius (imperial) 1.78"
    Bending Radius min. (R) 45mm
    Inner Diameter D (Imperial) 0.63"
    Inside ⌀ (ID) 16.0mm
    Length (L) 30.5m
    NW ⌀ 17mm
    Nominal ⌀ 21mm
    Nominal ⌀ (imperial) 0.5"
    Outside ⌀ (OD) 21.2mm
    Outside ⌀ (OD) (imperial) 0.84"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +120 °C
    Operating Temperature Moving -20 °C to +100 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UL-File Number E246572
    Country of Origin GB
    GTIN-13 / EAN 4031026464169
    Packaging 1 - Qty 1
    Packaging 1 - Type Reel
    UNSPSC Key 39131706
