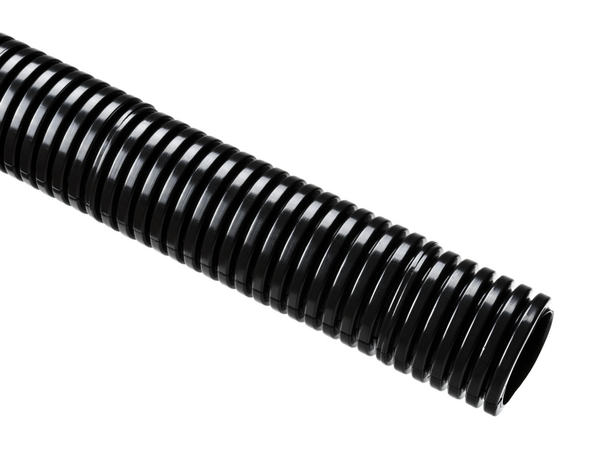

Spiral reinforced conduit, nom⌀28mm, OD=28.5mm, ID=21.7mm, black, 30.48m
Art.-No. 166-90192 | HG-SW0750C-PA6-BK |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Local order number 166-90192
    Material Polyamide 6 (PA6)
    PART DESCRIPTION HG-SW0750C-PA6-BK
    Package Content 30.48m
    Package Content packed in Pack
    Pitch Type coarse
    Type HG-SW0750C
    UV-Stabilised No
    Bending Radius (imperial) 1.97"
    Bending Radius min. (R) 50mm
    Inner Diameter D (Imperial) 0.85"
    Inside ⌀ (ID) 21.7mm
    Length (L) 30.5m
    NW ⌀ 23mm
    Nominal ⌀ 28mm
    Nominal ⌀ (imperial) 0.75"
    Outside ⌀ (OD) 28.5mm
    Outside ⌀ (OD) (imperial) 1.13"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +120 °C
    Operating Temperature Moving -20 °C to +100 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UL-File Number E246572
    Country of Origin GB
    GTIN-13 / EAN 4031026464176
    Packaging 1 - Type Reel
    UNSPSC Key 39131706
