21/04/2024

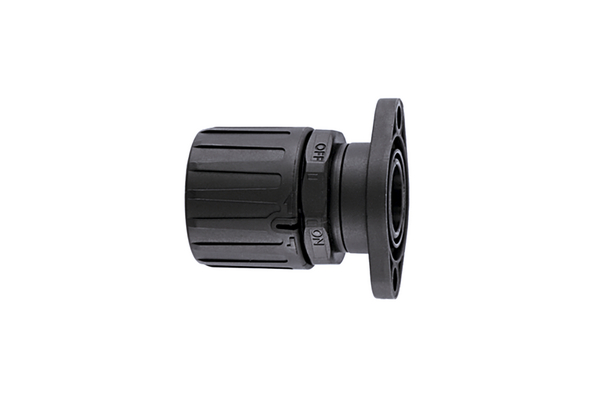

Straight fitting with swivel flange IP66 ø16mm
Art.-No. 166-21200 | HG16-SFL-PA66-BK Details

  • One piece, fast fit
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Request your individual offer now

Application Straight swivel flange.
Brass Thread (Y/N) No
Colour Black (BK)
Local order number HG16-SFL-PA66-BK-10ST
Material Polyamide 6.6 (PA66)
Pack Cont. 10pcs.
Package Content packed in Bag
PART DESCRIPTION HG16-SFL-PA66-BK
Product Family HG-SFL Straight Swivel Flange, IP66
Product Group Fittings with swivel flange
Short Description Straight fitting with swivel flange IP66 ø16mm
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) No
Thread type not applicable
Type of connection Snap-connection
Variant Straight
Fixing Hole Centres (F) 36.0mm
for Hole ∅ (FH) 5.2 mm
Length (L) 41mm
Lowest inner diameter 14.5mm
Min. Bore Size (B) 14.5mm
Nominal ∅ 16mm
Nominal ∅ (imperial) 0.63"
NW ∅ 12mm
Outside ∅ max (OD max.) 29mm
Weight/Unit 0.016kg
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66
Operating Temperature -50 °C to +135 °C
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 4031026303024
Packaging 1 - Height (m) 0.029m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00088
Packaging 1 - Weight (kg) 0.160001kg
Packaging 1 - Width (m) 0.16m
ETIM 7.0 Key EC001176
ETIM 8.0 Key EC001176
ETIM 9.0 Key EC001176
