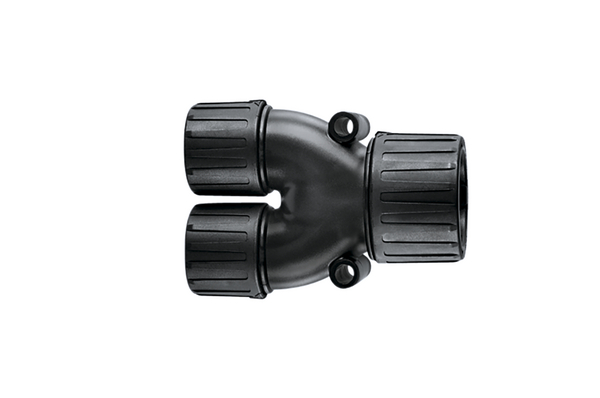

Y-Connector IP66 21-16mm black
Art.-No. 166-25802 | HG21-Y16-PA66/TPE-BK Details

  • Fast fit Y-shaped connector
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Request your individual offer now

Brass Thread (Y/N) No
Colour Black (BK)
Material Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
Pack Cont. 3pcs.
Package Content packed in Bag
PART DESCRIPTION HG21-Y16-PA66/TPE-BK
Product Family HG-Y Y-Connector, IP66
Product Group Connectors, reducers and couplers
Short Description Y-Connector IP66 21-16mm black
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) No
Variant Y-piece
for Hole ∅ (FH) 5.0 mm
From nominal diameter 21mm
Height (H) 89mm
Nominal ∅ 21mm
Nominal ∅ (imperial) 0.81"
NW ∅ 17mm
Thickness (T) 32
To nominal diameter 16mm
Weight/Unit 0.036956kg
Width (W) 59mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66 (in conjunction with HG fittings)
Operating Temperature -50 °C to +135 °C
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 4031026411439
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 3
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00129
Packaging 1 - Weight (kg) 0.110869kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001172
ETIM 8.0 Key EC001172
ETIM 9.0 Key EC001172
