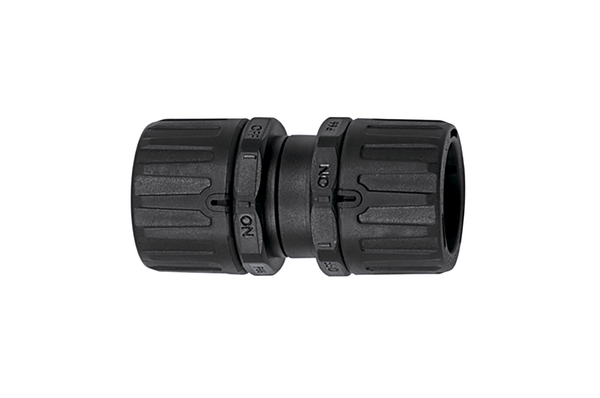

Conduit Connector IP66 28mm black
Art.-No. 166-24602 | HG28-HG28-PA66-BK Details

  • One piece, fast fit
  • Joins corrugated conduits

Request your individual offer now

Colour Black (BK)
Material Polyamide 6.6 (PA66)
Pack Cont. 10pcs.
Package Content packed in Bag
PART DESCRIPTION HG28-HG28-PA66-BK
Product Family HG-HG Conduit Connector, IP66
Product Group Connectors, reducers and couplers
Short Description Conduit Connector IP66 28mm black
Variant Straight
Diameter (D) 28mm
From nominal diameter 28mm

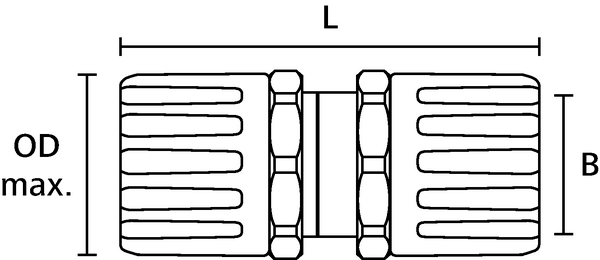

Length (L) 81mm
Min. Bore Size (B) 19.5mm
Nominal ∅ 28mm
Nominal ∅ (imperial) 1.13"
NW ∅ 23mm
Outside ∅ max (OD max.) 44mm
To nominal diameter 28mm
Weight/Unit 0.0511kg
∅ (D2) 28mm
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66
Operating Temperature -50 °C to +135 °C
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 4031026326429
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0026
Packaging 1 - Weight (kg) 0.511001kg
Packaging 1 - Width (m) 0.2m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 30
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 1.833003kg
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001172
ETIM 8.0 Key EC001172
ETIM 9.0 Key EC001172
