Reducer IP66 28-42mm black
Art.-No. 166-25009 | HG28-R42-PA66-BK Details

  • Reduce size of connector to attach smaller size conduits
  • Used with T-Connector and Y-Connectors
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Request your individual offer now

Colour Black (BK)
Material Polyamide 6.6 (PA66)
Pack Cont. 3pcs.
Package Content packed in Bag
PART DESCRIPTION HG28-R42-PA66-BK
Product Family HG-R Reducer, IP66
Product Group Connectors, reducers and couplers
Short Description Reducer IP66 28-42mm black
Thread type not applicable
Type of connection Snap-connection
Variant Straight

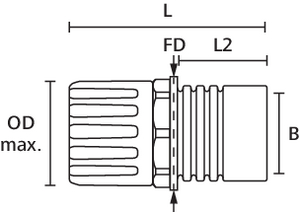

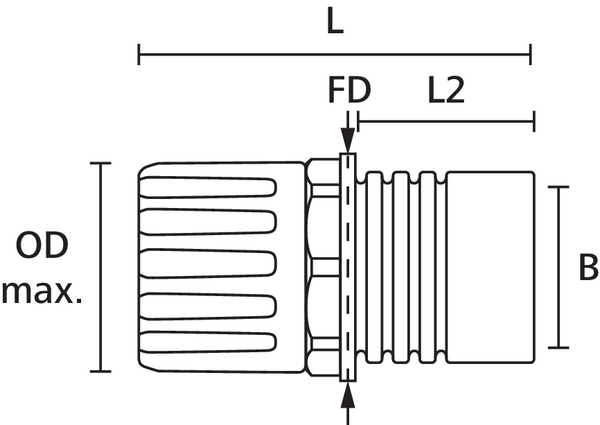

Diameter (D) 42mm
Face Diameter FD (metric) 50mm
From nominal diameter 42mm
Length (L) 65mm
Length (L2) 30mm
Min. Bore Size (B) 25.7mm
Nominal ∅ 28mm
Nominal ∅ (imperial) 1.13"
Outside ∅ max (OD max.) 44mm
Reduce to Nominal Diameter (Metric) 42mm
To nominal diameter 28mm
Weight/Unit 0.028kg
∅ (D2) 28mm
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP65
Operating Temperature -50 °C to +135 °C
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 4031026326283
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.24m
Packaging 1 - Qty 3
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00192
Packaging 1 - Weight (kg) 0.084001kg
Packaging 1 - Width (m) 0.16m
ETIM 7.0 Key EC001176
ETIM 8.0 Key EC001176
ETIM 9.0 Key EC001176
