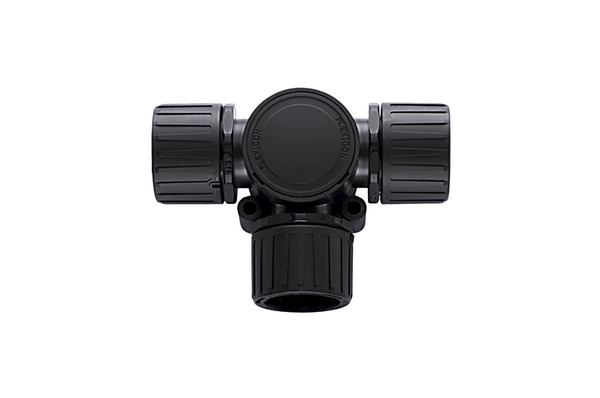

T-Connector IP66 28mm black
Art.-No. 166-24803 | HG28-T-PA66-BK Details

  • Fast fit T-shaped connector
  • Includes removable inspection lid
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
Show more

Request your individual offer now

Brass Thread (Y/N) No
Colour Black (BK)
Material Polyamide 6.6 (PA66)
Pack Cont. 3pcs.
Package Content packed in Bag
PART DESCRIPTION HG28-T-PA66-BK
Product Family HG-T T-Connector, IP66
Product Group Connectors, reducers and couplers
Short Description T-Connector IP66 28mm black
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) No
Variant T-Connector

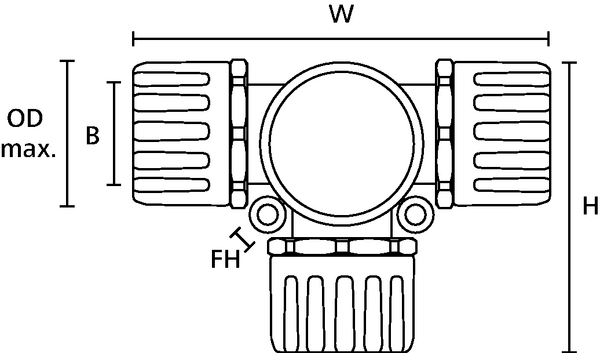

for Hole ∅ (FH) 6.0 mm
From nominal diameter 28mm
Height (H) 87mm
Min. Bore Size (B) 25.0mm
Nominal ∅ 28mm
Nominal ∅ (imperial) 1.13"
NW ∅ 23mm
Outside ∅ max (OD max.) 45mm
Thickness (T) 48
To nominal diameter 28mm
Weight/Unit 0.100027kg
Width (W) 125mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66
Operating Temperature -50 °C to +135 °C
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 4031026311463
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.33m
Packaging 1 - Qty 3
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00495
Packaging 1 - Weight (kg) 0.300082kg
Packaging 1 - Width (m) 0.25m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 9
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 1.200246kg
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001172
ETIM 8.0 Key EC001172
ETIM 9.0 Key EC001172
