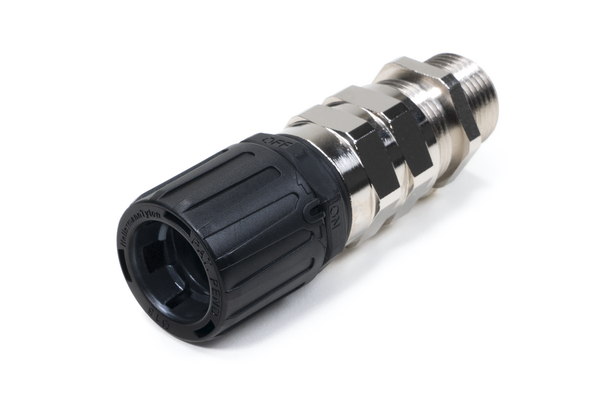

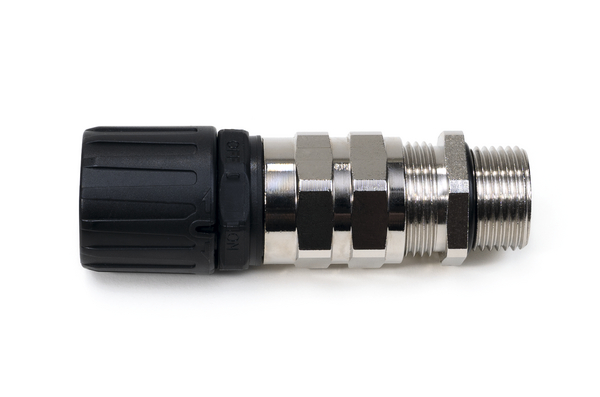

Straight cable gland fitting IP66 ø42mm M40 black
Art.-No. 166-21506 | HG42-SCG-M40-PA66/NPB-BK Details

  • Provides strain relief
  • Seals cable at IP68 and IP69k
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
Show more

Request your individual offer now

Application Straight fitting with cable seal and strain relief.
Brass Thread (Y/N) Yes
Cable ∅ max 28mm
Cable ∅ min 19mm
Colour Black (BK)
Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB)
Pack Cont. 2pcs.
Package Content packed in Bag
PART DESCRIPTION HG42-SCG-M40-PA66/NPB-BK
Product Family HG-SCG Straight Cable Gland Fitting, IP66
Product Group Fittings with strain relief and cable seal
Short Description Straight cable gland fitting IP66 ø42mm M40 black
Strain Relief Function (Y/N) Yes
Swivel Thread (Y/N) No
Thread type metric
Type of connection Snap-connection
Variant Straight
A/F Gland Body (A/F5) 50mm
A/F Thread (A/F2) 45mm
Height (H) 63mm
Length (L) 117mm
Min. Bore Size (B) 28mm
Nominal ∅ 42mm
Nominal ∅ (imperial) 1.63"
NW ∅ 36mm
Outside ∅ max (OD max.) 63mm
Thread Length (TL) 15mm
Thread Size M40
Weight/Unit 0.36048kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy < 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66 (in conjunction with HG fittings)
Operating Temperature -50 °C to +135 °C
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026325996
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 2
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00364
Packaging 1 - Weight (kg) 0.720961kg
Packaging 1 - Width (m) 0.2m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001176
ETIM 8.0 Key EC001176
ETIM 9.0 Key EC001176
