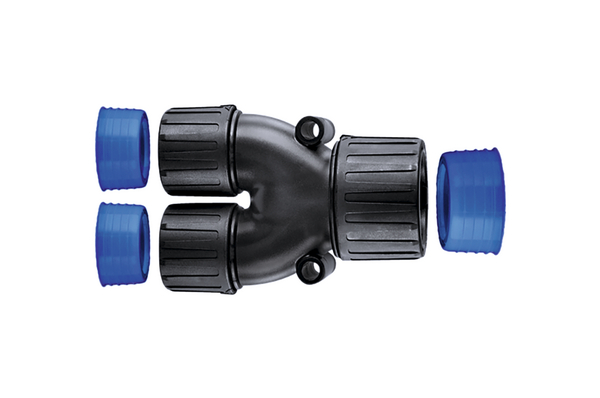

Y-Connector IP68 34-28mm black
Art.-No. 166-25904 | HGL34-Y28-PA66/TPE-BK Details

  • Fast fit Y-shaped connector
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Request your individual offer now

Application Fulfils IP66, IP67, IP68 and IP69k.
Brass Thread (Y/N) No
Colour Black (BK)
Material Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE)
Pack Cont. 2pcs.
Package Content packed in Bag
PART DESCRIPTION HGL34-Y28-PA66/TPE-BK
Product Family HGL-Y Y-Connector, IP68
Product Group Connectors, reducers and couplers
Short Description Y-Connector IP68 34-28mm black
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) No
Variant Y-piece

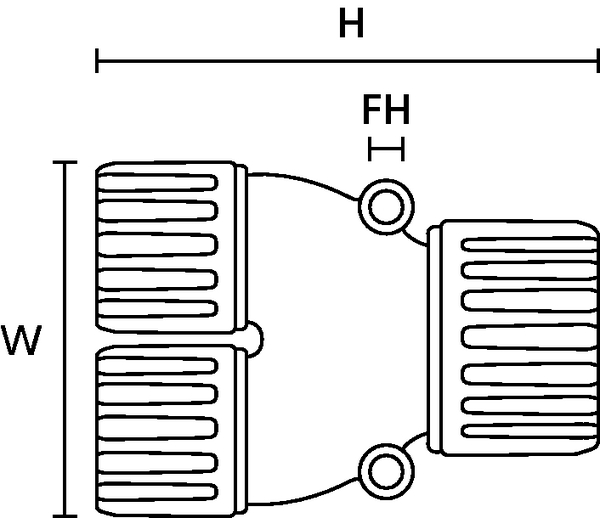

for Hole ∅ (FH) 6.5 mm
From nominal diameter 34mm
Height (H) 116mm
Nominal ∅ 34mm
Nominal ∅ (imperial) 1.31"
NW ∅ 29mm
Thickness (T) 51
To nominal diameter 28mm
Weight/Unit 0.088kg
Width (W) 90mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP69k (in conjunction with HGL fittings), IP66, IP68, IP67
Operating Temperature -50 °C to +135 °C
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 4031026411484
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 2
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00138
Packaging 1 - Weight (kg) 0.176001kg
Packaging 1 - Width (m) 0.2m
ETIM 7.0 Key EC001172
ETIM 8.0 Key EC001172
ETIM 9.0 Key EC001172
