The insert sleeve functions as a transport protection and as a help to pull cables in the sleeve. This inset sleeve should be removed for application.

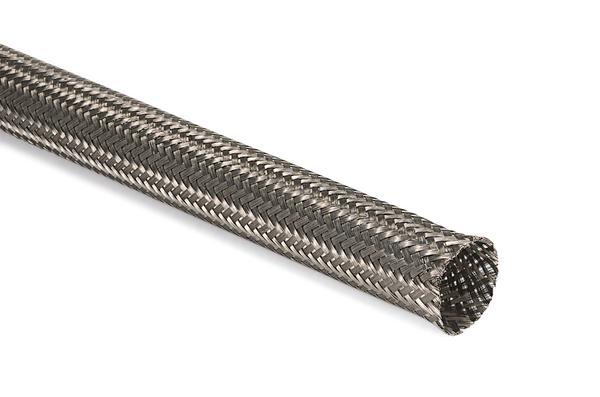

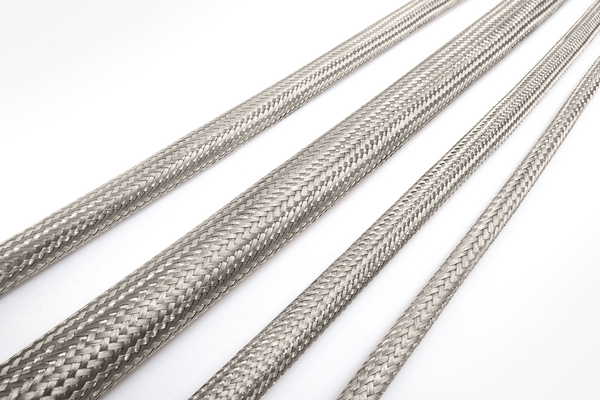

Braided sleeving, EMI shielding, nom⌀20mm, ⌀19.0-30.0mm, metal, 100m
Art.-No. 173-00206 | HEGEMIP-VG20-SNCU-ML

Copied
  • Excellent electromagnetic protection
    Very flexible, expandable and easy to apply
    Especially suitable for applications in tight areas or requiring movement

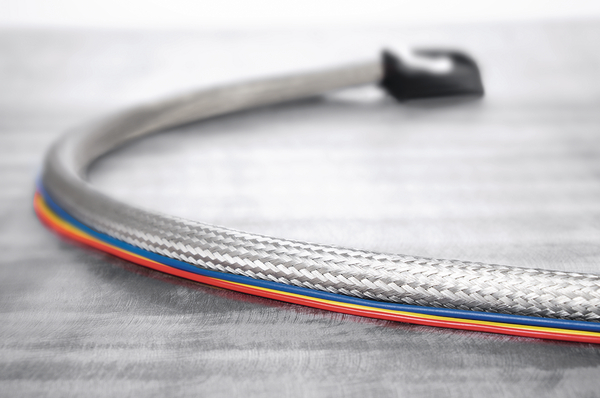

    Inner disposable tube protects sleeve from deformation and allows for easy insertion of cables
    Very good abrasion resistance
    Approved to military norm VG 96936-10 / Type A

Request your individual offer now

Application Helagaine HEGEMIP-VG provides electromagnetic protection for the defence industry.
Colour Metal (ML)
Internet Customer Notice The insert sleeve functions as a transport protection and as a help to pull cables in the sleeve. This inset sleeve should be removed for application.
Key product features EMI shielding
Material Tin Plated copper (SNCU)
Open, post termination (Yes/No) Yes
PART DESCRIPTION HEGEMIP-VG20-SNCU-ML
Package Content 100m
Product Family Helagaine HEGEMIP-VG
Product Group Electromagnetic protection braided sleeving for defence applications
Short Description Electromagnetic protection braided sleeving ⌀ 20 mm, 100 m, metal
Type HEGEMIP-VG20
Weight/Unit 0.2772kg
Bundle ⌀ 19.0-30.0mm
Bundle ⌀ max. 30.0mm
Bundle ⌀ min. 19.0mm
Diameter (D) 20mm
Nominal ⌀ 20mm
Weight 264.5g/m
Designation as per VG-Norm VG 96936 T10 A 007 A
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2, FMVSS 302
Hazardous Goods No
Nato number 6145-12-333-7532
Operating Temperature -65 °C to +150 °C
ROHS compliant Yes
Specifications
Specifications VG 96936-10
Country of Origin FR
Customs Number 74198090
GTIN-13 / EAN 4031026471204
Packaging 1 - Height (m) 0.34m
Packaging 1 - Length (m) 0.44m
Packaging 1 - Qty 100
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.065824
Packaging 1 - Weight (kg) 27.72kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.38m
Packaging 3 - Length (m) 0.46m
Packaging 3 - Qty 100
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0804
Packaging 3 - Weight (kg) 28.22kg
Packaging 3 - Width (m) 0.46m
Packaging 4 - Height (m) 1.064m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 800
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.021
Packaging 4 - Weight (kg) 246.76kg
Packaging 4 - Width (m) 0.8m
Reel Length 100m
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
UNSPSC Key 39131602
