The inset sleeve functions as a transport protection and as a help to pull cables in the sleeve. This inset sleeve should be removed for application.

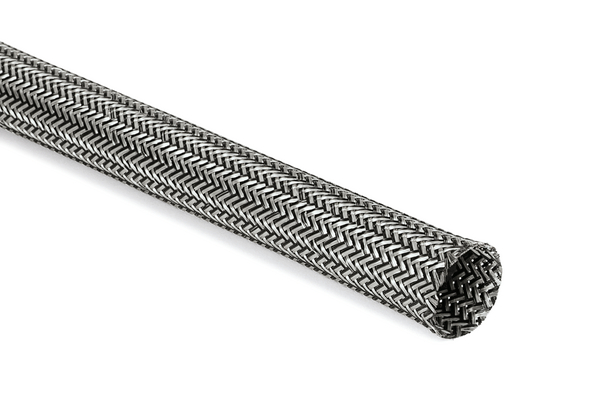

Braided sleeving, EMI shielding, nom⌀4mm, ⌀4-6mm, metal/black, 100m
Art.-No. 173-00400 | HEGEMIP04-PET/SNCU-BK/ML |

Excellent electromagnetic protection
Extremely flexible, expandable and easy to apply
Superior abrasion protection
No kinks or tears, even when bending the sleeve 90°
Particularly suitable for applications with restricted space or requiring movement
Inner disposable tube protects sleeve from deformation and allows for easy insertion of cables
Fulfils the requirements of IEC CISPR25 for radio disturbances in vehicles, boats and engines

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Application	Helagaine HEGEMIP braided sleeving is used for highly sensitive electronics, such as electrical appliances and machines, radio equipment, military and automotive engineering.
Colour	Metal (ML), Black (BK)
Internet Customer Notice	The inset sleeve functions as a transport protection and as a help to pull cables in the sleeve. This inset sleeve should be removed for application.
Key product features	EMI shielding
Local order number	170-00400
Material	Polyester, halogen free (PET), Tin Plated copper (SNCU)
Open, post termination (Yes/No)	Yes
PART DESCRIPTION	HEGEMIP04-PET/SNCU-BK/ML
Package Content	100m
Package Content packed in	Pack
Product Family	Helagaine HEGEMIP
Product Group	Electromagnetic Protection Braided Sleeving
Short Description	Electromagnetic protection braided sleeving 4-6.5mm
Type	HEGEMIP04
Weight/Unit	0.0362kg

Abrasion Resistance	High
ELV compliant Dir. Art. 4 (2)	YES
EMI requirements	10 KHz to 1 GHz according to CISPR25 (DIN VDE 0879-2)
Flammability	UL 94 V2, FMVSS 302
Halogen-free	Yes
Hazardous Goods	No
Melting Point	+329 °F (200 °C)
Operating Temperature	-40 °C to +150 °C
ROHS compliant	Yes
