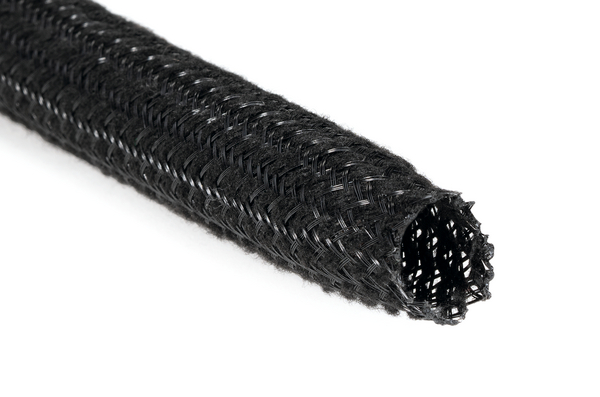

Braided sleeving, noise protective, nom⌀9mm, ⌀6-16mm, black, 5000pcs.
Art.-No. 170-60901 | HEGSAS09-60mm-PET-BK

Copied
  • Superior noise reduction
  • Made of sturdy polyester
  • Highly flexible
  • Expansion rate of 3:1
  • Easy to apply over irregular shapes due
  • High surface coverage
  • Excellent abrasion resistance

Request your individual offer now

Application Helagaine HEGSAS is used primarily in the automotive sector and wherever vibration noise must be reduced. Helagaine HEGSAS can be supplied in pre-cut lengths on request.
Colour Black (BK)
Key product features noise protective
Material Polyester (PET)
Open, post termination (Yes/No) Yes
PART DESCRIPTION HEGSAS09-60mm-PET-BK
Package Content 5000pcs.
Package Content packed in Box
Product Family Helagaine HEGSAS
Product Group Polyester braided sleeving for reducation of vibration noise
Type HEGSAS09-60mm
Weight/Unit 0.00049kg
Bundle ⌀ 6-16mm
Bundle ⌀ max. 16mm
Bundle ⌀ min. 6mm
Nominal ⌀ 9mm
ELV compliant Dir. Art. 4 (2) YES
Flammability FMVSS 302
Halogen-free Yes
Hazardous Goods No
Melting Point +250 °C
Operating Temperature -50 °C to +150 °C
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 58081000
GTIN-13 / EAN 4031026409375
Packaging 1 - Qty 5000
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 2.450001kg
Reel Length 100m
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
UNSPSC Key 39131602
