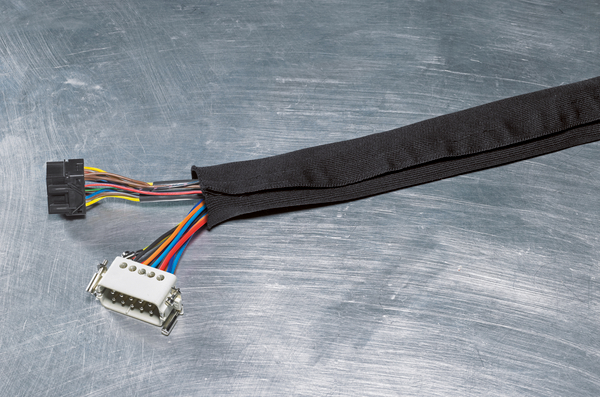

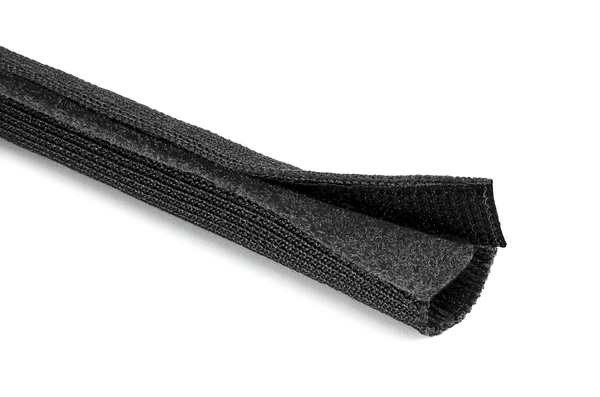

Re-sealable protective sleeving for post-termination cable organisation 25mm
Art.-No. 170-05250 | HELAHOOK25-PET-BK Details

  • Re-sealable cable protection made of polyester
  • Very elastic, fits snugly around the cables

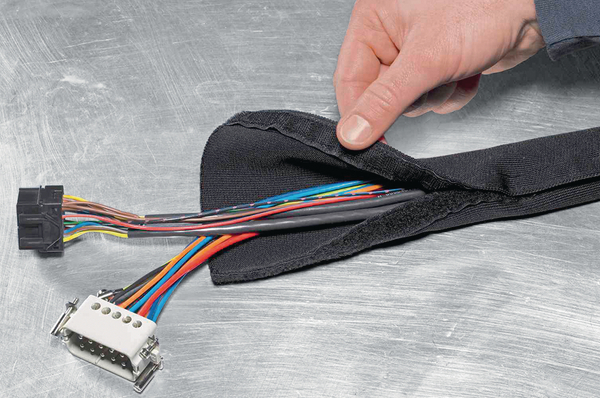

  • Hook and loop sealing system can be used for retro-fitting
  • High abrasion-resistance

Request your individual offer now

Application HELAHOOK is used in industrial machines, electrical appliances, shipbuilding, railway vehicles and in the aerospace industry. HELAHOOK is also employed in automobiles or commercial vehicles. It is the ideal solution for post-termination cable organisation and wherever repeated use is a necessity.
Colour Black (BK)
Material Polyester (PET)
Open, post termination (Yes/No) Yes
PART DESCRIPTION HELAHOOK25-PET-BK
Pack Cont. 25m
Package Content packed in Reel
Product Family HELAHOOK
Product Group Re-sealable protective sleeving for post-termination cable organisation
Short Description Re-sealable protective sleeving for post-termination cable organisation 25mm
Type HELAHOOK25
Bundle Diameter max (metric) 40mm
Bundle ∅ 20-40mm
Bundle ∅ min. 20mm
Length (L) 25m
Nominal ∅ 25mm
Wall (WT) 1.5mm
Weight/Unit 0.043kg
Width (W) 105mm
Dielectric Strength 0.8kV/mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2, FMVSS 302
Halogen-free Yes
Hazardous Goods No
Operating Temperature -50 °C to +150 °C
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026266671
Packaging 1 - Height (m) 0.175m
Packaging 1 - Length (m) 0.37m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.02396
Packaging 1 - Weight (kg) 2.245kg
Packaging 1 - Width (m) 0.37m
Packaging 3 - Height (m) 0.385m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 50
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0556
Packaging 3 - Weight (kg) 5.04kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.299m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 900
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.247
Packaging 4 - Weight (kg) 111.72kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
