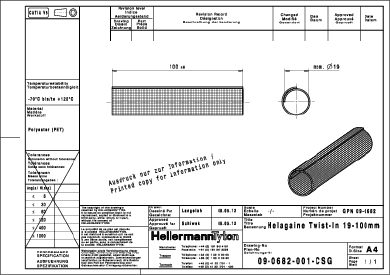

Self-closing sleeving, 16 - 19 mm, PET, black, 25 m
Art.-No. 170-01004 | Twist-In 19-PET-BK Details

  • Self-closing sleeve made of polyester
  • Very good protection against abrasion
  • Ideal for retro-fitting
  • Quick and easy installation and removal
  • Allows to bundle for inspection, maintenance and assembly
  • Small range of sizes covers a wide range of applications
Show more

Request your individual offer now

Application Helagaine Twist-In has many applications in engineering, electronics and electrical installations. Twist-In in the practical 2m and 5m lengths, used at home and office, provide perfect cable protection for PC, TV- and HiFi-equipment.
Application Tool HSG0
Colour Black (BK)
Key product features abrasion resistant (advanced), wrappable, high surface coverage
Material Polyester (PET)
Open, post termination (Yes/No) Yes
Pack Cont. 25m
Package Content packed in Reel
PART DESCRIPTION Twist-In 19-PET-BK
Product Family Helagaine Twist-In
Product Group Polyester self-closing sleeving
Short Description Self-closing sleeving, 16 - 19 mm, PET, black, 25 m
Bundle Diameter max (Metric) 19mm
Bundle ∅ 16-19mm
Bundle ∅ min. 16mm
Nominal ∅ 19mm
Wall (WT) 0.9mm
Weight/Unit 0.0372kg
ELV compliant Dir. Art. 4 (2) YES
Flammability FMVSS 302
Halogen-free Yes
Hazardous Goods No
Melting Point +255 °C
Operating Temperature -50 °C to +125 °C
Self extinguishing Yes
Specifications
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E197993
Country of Origin FR
Customs Number 58063210
GTIN-13 / EAN 4031026404257
Packaging 1 - Height (m) 0.171m
Packaging 1 - Length (m) 0.375m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.02405
Packaging 1 - Weight (kg) 0.93kg
Packaging 1 - Width (m) 0.375m
Packaging 3 - Height (m) 0.385m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 50
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0556
Packaging 3 - Weight (kg) 2.41kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.299m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 900
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.247
Packaging 4 - Weight (kg) 64.38kg
Packaging 4 - Width (m) 0.8m
Reel Length 25m
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
