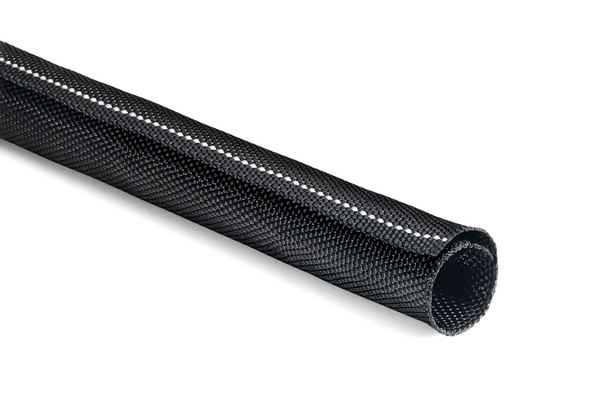

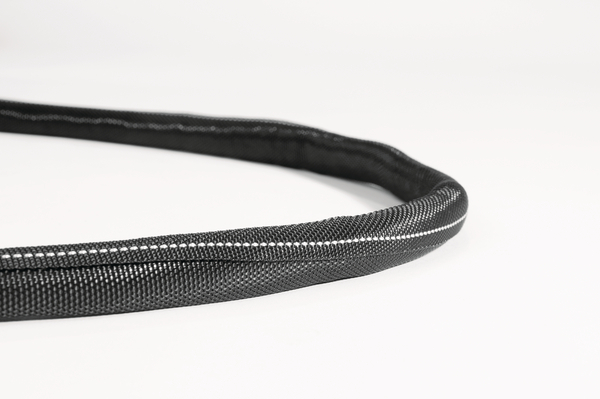

Self-closing sleeving, 10 - 13 mm, PET, flame-retardent, black with white identification yarn, 50 m
Art.-No. 170-01102 | Twist-In-FR 13-PET-BK Details

  • Self-closing sleeve made from polyester
  • Optimal fire protection
  • Ideal for retro-fitting
  • Very easy, quick installation and removal

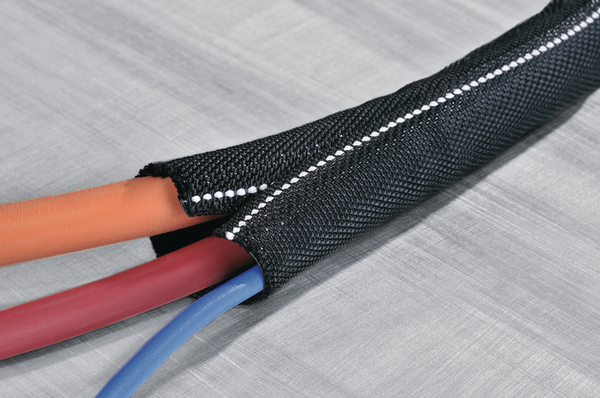

  • Quick and easy access to bundle for inspection, maintenance and assembly
  • Small range of sizes covers a wide range of applications
Show more

Request your individual offer now

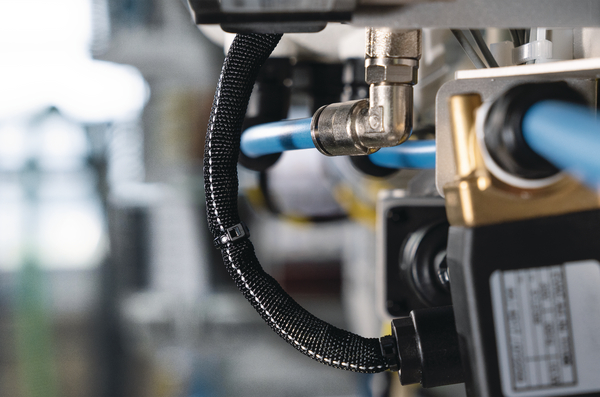

Application Helagaine Twist-In-FR can be used in areas where fire protection is important, such as railway, aerospace and shipbuilding.
Application Tool HSG0
Colour Black with White Identification Yarn (BKIDWH)
Material Polyester (PET)
Open, post termination (Yes/No) Yes
PART DESCRIPTION Twist-In-FR 13-PET-BK
Pack Cont. 50m
Package Content packed in Reel
Product Family Helagaine Twist-In-FR
Product Group Polyester self-closing sleeving, flame-retardent
Short Description Self-closing sleeving, 10 - 13 mm, PET, flame-retardent, black with white identification yarn, 50 m
Type Twist-In-FR 13
Bundle Diameter max (metric) 13mm
Bundle ∅ 10-13mm
Bundle ∅ min. 10mm
Length (L) 50m
Nominal ∅ 13mm
Wall (WT) 0.9mm
Weight/Unit 0.0252kg
ELV compliant Dir. Art. 4 (2) YES
Flammability FMVSS 302, UL 1441 VW-1
Halogen-free Yes
Hazardous Goods No
Melting Point +240 °C
Operating Temperature -50 °C to +125 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications
Specifications ECE R-118-03 Abschnitt 8 / Annex 8, EN 45545-2
UL OCD link Link
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E197993
Country of Origin FR
Customs Number 58063210
GTIN-13 / EAN 4031026404325
Packaging 1 - Height (m) 0.172m
Packaging 1 - Length (m) 0.375m
Packaging 1 - Qty 50
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.02419
Packaging 1 - Weight (kg) 1.26kg
Packaging 1 - Width (m) 0.375m
Packaging 3 - Height (m) 0.385m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 100
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0556
Packaging 3 - Weight (kg) 3.07kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.299m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1800
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.247
Packaging 4 - Weight (kg) 76.26kg
Packaging 4 - Width (m) 0.8m
Reel Length 50m
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
