** This product has now been discontinued, please view Category 6 products for alternatives **

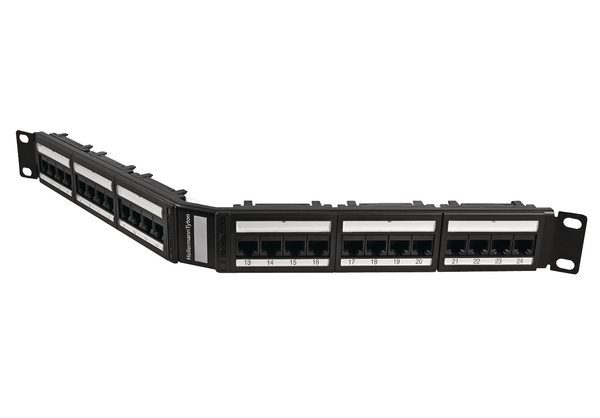

1U 24 Port Angled Panel
Art.-No. 853-25268 | 1/2408IDCAG5E/BK-CN Details

This product is not available anymore.
  • Exceeds Category 5e performance standards
  • Angled design provides increased rack capacity
  • 4 Port RJ45 modules
  • 568A or 568B wiring options
  • Double labelling fields and software available
  • Magnifying covers over labelling fields
  • Supplied with Cage Nut fixings
  • Optional rear cable management
  • Also available in 2U 48 port configuration
  • Backward compatible to Category 5 and Voice
Show more

Request your individual offer now

Colour Black (BK)
Internet Customer Notice ** This product has now been discontinued, please view Category 6 products for alternatives **
Package Content packed in Box
Panel Fixing Method cage nut
PART DESCRIPTION 1/2408IDCAG5E/BK-CN
Performance Category Category 5E (Class D)
Port count 24
Product Family 1U 24 Port Angled Panel
Product Group Global Category 5e
Technical Description The Global Angled panel is manufactured from black powder coated mild steel and the jack presentation within the patch panel is a 4 port modular PCB assembly which can be removed and replaced if required. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 5e. The Angled Global Panel is supplied with a comprehensive colour and numbering label on the rear modules showing both 568A and 568B wiring options to ensure error free terminations. The panel is supplied with Cage Nut fixings as standard, the panels is also available with Rack Snap mounting fixings, 12 - 24 rack screws or without fixings if required. The Angled Global panel offers 2 labelling fields with a magnifying lens for clear identification as standard and an optional rear cable manager is also available. The Alpha Label software package is available for download at www.htdata.co.uk and enables straight forward port labelling. The Angled Global Category 5e Panels offer backward compatibility with Category 5 and Voice products.

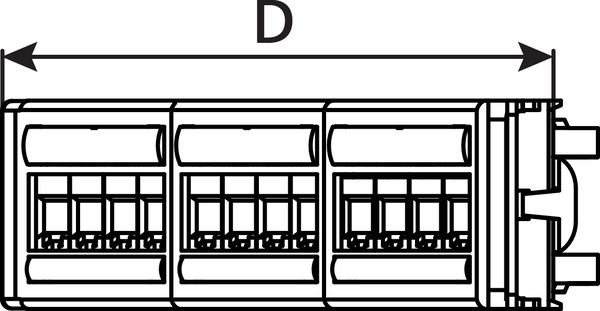

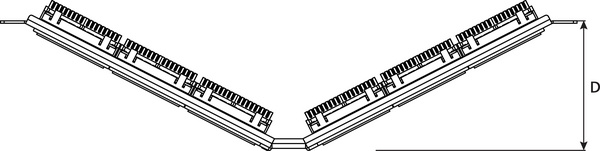

Depth (D) 106mm
Height (H) 44mm
Width (W) 483mm
Country of Origin GB
Dimensions W x H x D 483 mm x 44 mm x 106 mm
GTIN-13 / EAN 5022660122217
ETIM 8.0 Key EC000264
ETIM 9.0 Key EC000264
