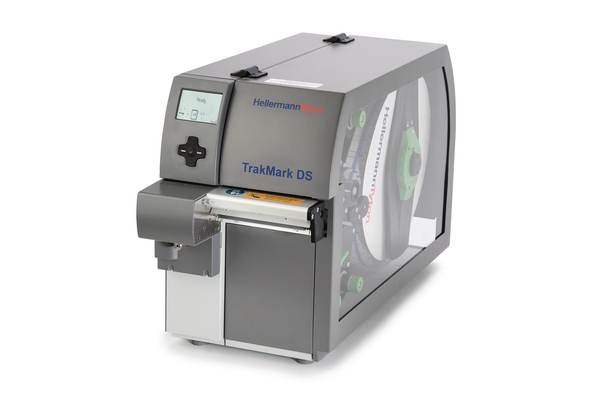

Thermal transfer printer : TrakMark DS

Thermal Transfer Printer Double Sided Printing 300 dpiArticle number: 556-05000

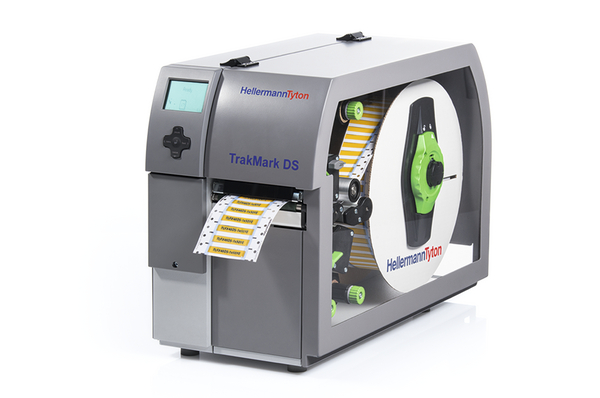

TrakMark DS printer – for double sided printing.


  • High volume double sided printing
  • Prints perfectly on HellermannTyton heat shrink ladder style products
  • Uses standard 300 m ribbons
  • Barcodes: standard and 2D
  • Print speed up to 125 mm/s (30 mm/s recommended for ladder style products and tubing)
  • Multiple language selection
  • Windows drivers: 32/64 bit for Windows XP, Windows Vista, Windows 7, 8, 10

Certifications & Approvals

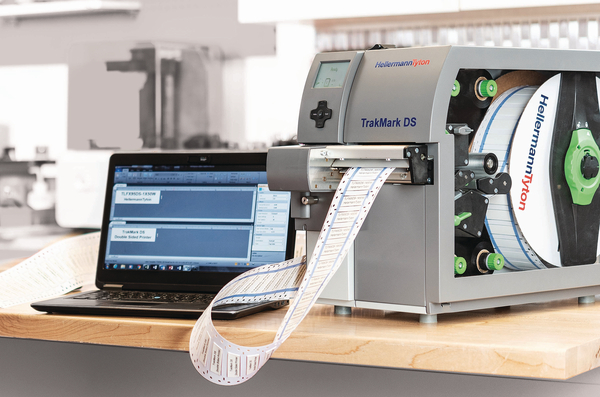

The templates in Tagprint Pro have been designed to enable the user to either print the same text on both sides or independent text on each side. The flexibility that Tagprint Pro 2.0 gives ensures that users are able to manage printable data from both simple keyboard input to large and complex data from external sources such as excel in an effortless way.
The simplicity of Tagprint Pro and the print capability of TrakMark DS gives every user the ability to print required texts accurately and quickly.

Application 2 Recommended Software for printing with TrakMark DS: Tagprint Pro 2.0
Colour Grey (GY)
Features and Benefits • Print resolution 300 dpi • Print speed 30 to 125 mm/s • Print width 105 mm • Printable length 5-1000 mm • Media width: - Continuous heatshrink tubing (flattened) 3-85 mm - Ladderstyle heatshrink tubing (flattened) 50-110 mm • Media roll: Total internal diameter spool/material 300mm • 395 (H) x 554 (D) x 248 (W) mm
Pack Cont. 1pc.
Package Quantity per EA
Print resolution DPI 300dpi
Product Family TrakMark DS, Double Sided
Product Group Thermal transfer printer
Short Description Thermal Transfer Printer Double Sided Printing 300 dpi
Depth (D) 554mm
Height (H) 395mm
Label Height Max (metric) 2000mm
Label Height Min (metric) 6.35mm
Label Width Max (imperial) 4.25"
Label Width Max (metric) 105.6mm
Label Width Min (imperial) 0.65"
Label Width Min (metric) 16.51mm
Label Width min - max 16.5 - 105.6 mm
Length (L) 533.4mm
Print Method Thermal transfer printing
Width (W) 248mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Interfaces RS232 C, USB 2.0, Ethernet 10/100 Base T
Material Metal (MET)
Max. Print Width 105.6mm
Max. Print Width 4.16"
Operating Temperature - °C +4 °C to +40 °C
Print Head Type 300 dpi, flat type
Print Speed 30, 40, 50, 75, 100, 125 mm/s
Printer Memory 64MB RAM
Specifications 2004/108/EG, 2014/35/EU, ANSI/UL 60950-1, ANSI/UL 60950-21, ANSI/UL 60950-22, ANSI/UL 60950-23, EN 55022:2011-12, EN 55024:2011-09, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, FCC
Supported Barcodes, Printer Standard, 2D
Supported Consumables Shrinkable Wire Markers: Continuous Tubing – TLFX, TULT, TCGT; Ladder Style – TULT DS, TLFX DS Cable Bundle Tags: Continuous - TIPTAG, TIPTAG PU
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number MH18396
Dimensions W x H x D 248 mm x 395 mm x 554 mm
EAN / GTIN-13 4031026321783
Packaging 3 - Height (m) 0.463m
Packaging 3 - Length (m) 0.772m
Packaging 3 - Qty 1
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.1147
Packaging 3 - Weight (kg) 21.5kg
Packaging 3 - Width (m) 0.321m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 6
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 150.0kg
Packaging 4 - Width (m) 0.8m
Weight 46.2lbs
Weight 21kg
ETIM 6.0 EC001672
ETIM 7.0 Key EC001672
Printer/Reader variant desktop
UNSPSC Key 39131505
