15/04/2024

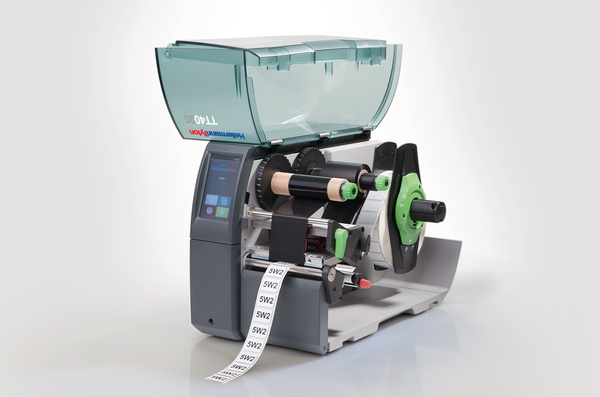

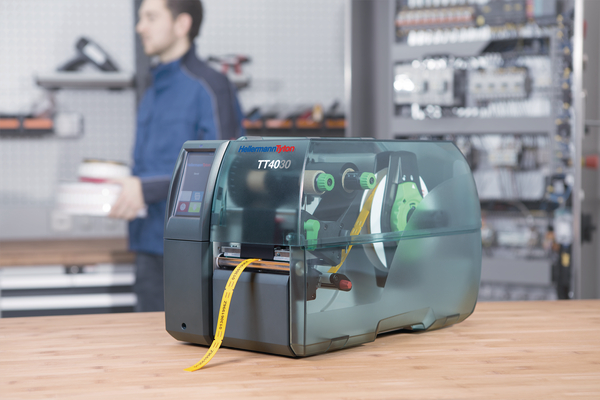

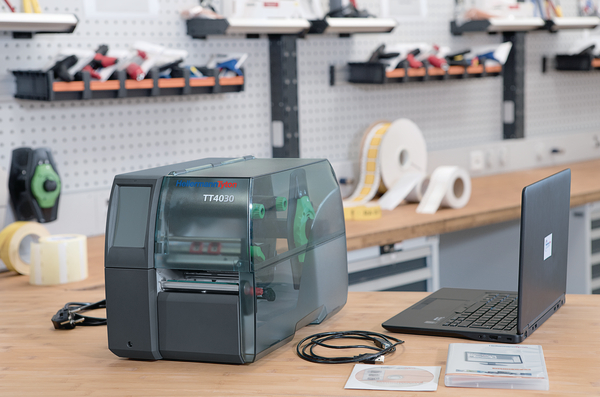

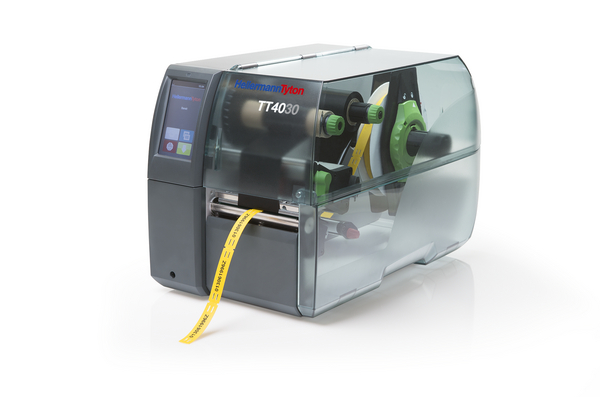

Thermal Transfer Printer TT4030
Art.-No. 556-04037 | TT4030-PL-GY Details

  • High volume single sided printing

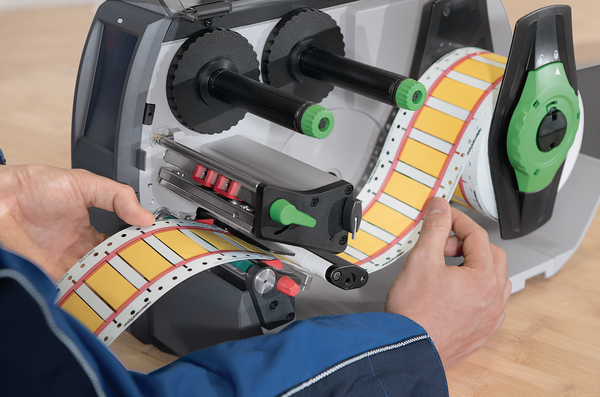

  • Print on HellermannTyton heatshrink tubing, cable markers and labels
  • Uses standard 300 m ribbons
  • Barcodes: standard and 2D
  • Print speed up to 300 mm/s (30 mm/s recommended for ladder style products and tubing)
  • Multiple language selection
  • Windows drivers: 32 / 64 bit for Windows XP, Windows Vista, Windows 7, 8, 10, 11
Show more

Request your individual offer now

e-Learning

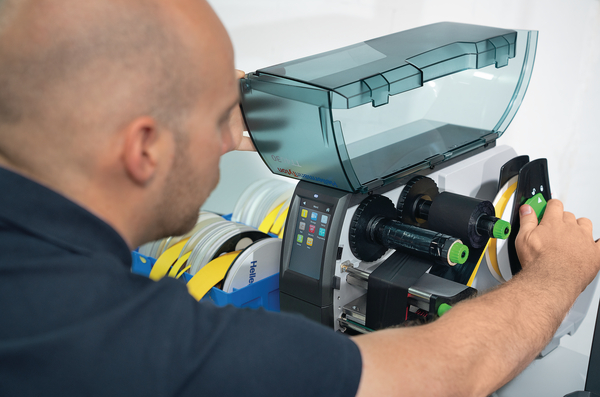

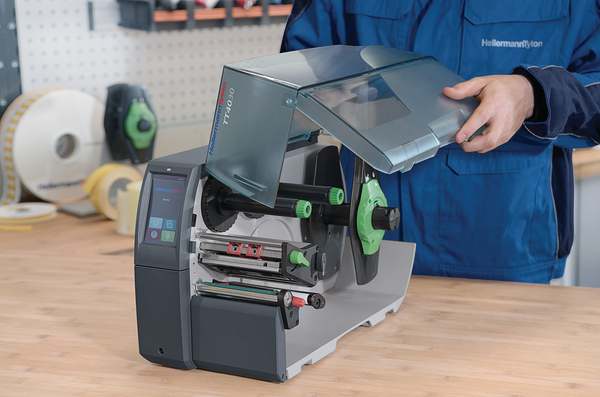

Application The TT4030 is optimally suited to industrial use and is designed for a wide range of applications. High reliability and multiple peripherals enable applications and solutions tailored to specific customer requirements. This printer is perfect for printing onto HellermannTyton materials such as self-adhesive labels, shrinkable tubing and identification tags. It is easy to use thanks to its touchscreen display and clear status messages which can be shown in multiple languages. 300 dpi resolution ensures that barcodes, warning symbols, logos and text are as sharp as they can be. For optimal operation, we recommend our TagPrintPro software.
Colour Grey (GY)
Material Plastic (PL)
Pack Cont. 1pc.
Package Content packed in EA
PART DESCRIPTION TT4030-PL-GY
Print resolution DPI 300dpi
Product Family TT4030 Medium to High Volume Printer
Product Group Thermal transfer printer
Short Description Thermal Transfer Printer TT4030
Depth (D) 460mm
Height (H) 288mm
L x H x W 460 x 288 x 252mm
Label Width Max (imperial) 4.33"
Label Width Min (imperial) .16"
Label Width min - max 4 - 110 mm
Length (L) 381.0mm
Power Supply 100-240V / 50-60Hz
Print Material Height Max (metric) 2000mm
Print Material Height Min (metric) 4.00mm
Print Material Width Max (metric) 110.00mm
Print Material Width Min (metric) 4.00mm
Print Method thermal transfer print
Weight/Unit 9.98kg
Width (W) 252mm
CE Certification Yes
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Halogen-free No
Hazardous Goods No
Interfaces RS232 C, USB 2.0, Ethernet 10/100 Base T
Max. Print Width 105.70mm
Max. Print Width 4"
Operating Temperature +4 °C to +40 °C
Print Head Type 300 dpi, flat type
Print Speed up to 300mm/s
Printer Memory 256MB RAM
Specifications
Supported Barcodes Standard, 2D
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin DE
Customs Number 84433210
Dimensions W x H x D 252 mm x 288 mm x 460 mm
GTIN-13 / EAN 4031026584119
Packaging 1 - Height (m) 0.29m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.03408
Packaging 1 - Weight (kg) 9.98kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Height (m) 0.415m
Packaging 3 - Length (m) 0.595m
Packaging 3 - Qty 1
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0951
Packaging 3 - Weight (kg) 10.48kg
Packaging 3 - Width (m) 0.385m
Packaging 4 - Height (m) 0.975m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 8
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.936
Packaging 4 - Weight (kg) 104.84kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001672
ETIM 8.0 Key EC001672
ETIM 9.0 Key EC001684
UNSPSC Key 39131505
Variant desktop
