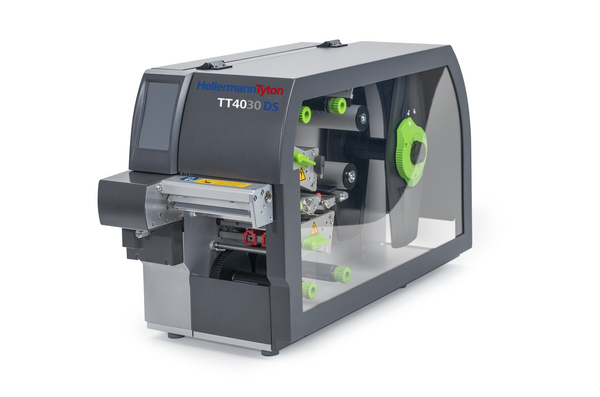

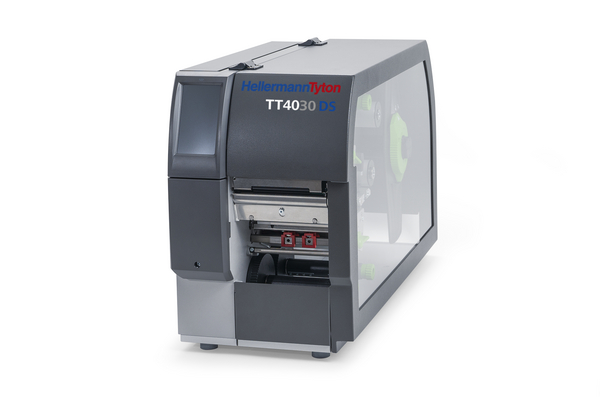

TT4030DS, Double Sided
Art.-No. 556-04061 | TT4030DS-MET-GY Details

  • High volume double-sided printing
  • Prints perfectly on HellermannTyton heat shrink ladder style products
  • Colour touchscreen display
  • Print resolution 300 dpi
  • Print heating can be assigned separately to each print head
  • Printing labels using only print head 2
  • Optimized printing by ribbon saving option
  • Multiple language selection
Show more

Request your individual offer now

e-Learning

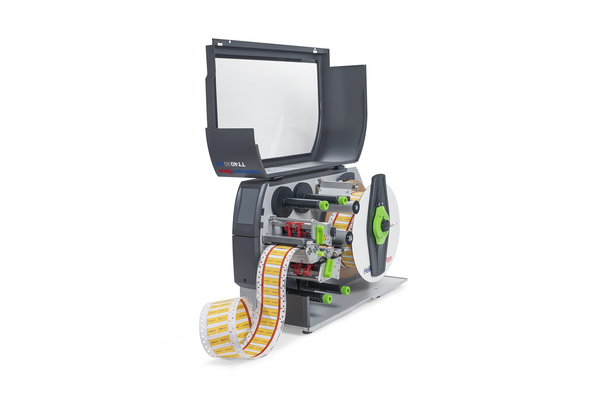

Application The TT4030DS is a high-performance printer for double-sided printing. This printer is perfect for double-sided printing on HellermannTyton shrinkable tubing. With two print heads mounted one on top of the other, the TT4030DS prints onto both sides of the material at the same time. High reliability and multiple peripherals enable applications and solutions tailored to specific customer requirements. It is easy to use thanks to its colour touchscreen display and clear status messages which can be shown in multiple languages. 300 dpi resolution ensures that barcodes, warning symbols, logos and text are as sharp as they can be.
Colour Grey (GY)
Material Metal (MET)
Pack Cont. 1pc.
PART DESCRIPTION TT4030DS-MET-GY
Print resolution DPI 300dpi
Product Family TT4030DS, Double Sided
Product Group Thermal transfer printer
Depth (D) 594mm
Height (H) 395mm
Label Width min - max 14 - 110 mm
Print Material Height Min (metric) 4mm
Print Material Width Max (metric) 110mm
Print Material Width Min (metric) 14mm
Print Method thermal transfer print
Reel diameter (Ribbon) max. (metric) 80mm
Run Length Ribbon max. (metric) 450000mm
Weight/Unit 24.7kg
Width (W) 248mm
CE Certification Yes
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Interfaces RS232 C, USB 2.0, Ethernet 10/100 Base T
Max. Print Width 105.7mm
Print Head Type 300 dpi, flat type
Print Speed 200 mm/s max.
Specifications
Supported Programming Languages JScript, ZPL II, abc Basic Compiler
Country of Origin DE
Customs Number 84433210
Dimensions W x H x D 248 mm x 395 mm x 594 mm
GTIN-13 / EAN 4031026709147
Packaging 1 - Type Carton
Packaging 3 - Height (m) 0.515m
Packaging 3 - Length (m) 0.79m
Packaging 3 - Qty 1
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.1668
Packaging 3 - Weight (kg) 24.701kg
Packaging 3 - Width (m) 0.41m
Packaging 4 - Height (m) 1.174m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 4
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.127
Packaging 4 - Weight (kg) 119.804kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001672
ETIM 8.0 Key EC001672
ETIM 9.0 Key EC001684
UNSPSC Key 39131505
Variant desktop
