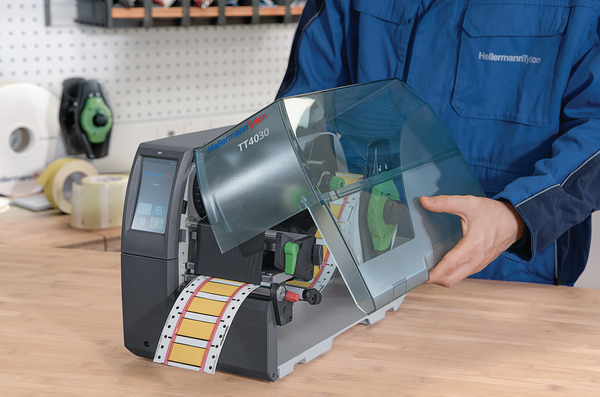

Thermal transfer printer TT4030UK

TT4030, High volume printing, Article number: 556-04038

Features

  • High volume single sided printing
  • Print on HellermannTyton heatshrink tubing, cable markers and labels
  • Uses standard 300 m ribbons
  • Barcodes: standard and 2D
  • Print speed up to 300 mm/s (30 mm/s recommended for ladder style products and tubing)
  • Multiple language selection
  • Windows drivers: 32 / 64 bit for Windows XP, Windows Vista, Windows 7, 8, 10

Certifications & Approvals

Application

The TT4030 is optimally suited to industrial use and is designed for a wide range of applications. High reliability and multiple peripherals enable applications and solutions tailored to specific customer requirements. This printer is perfect for printing onto HellermannTyton materials such as self-adhesive labels, shrinkable tubing and identification tags. It is easy to use thanks to its touchscreen display and clear status messages which can be shown in multiple languages. 300 dpi resolution ensures that barcodes, warning symbols, logos and text are as sharp as they can be.

Colour Grey (GY)
Features and Benefits High volume single sided printing Print speed up to 300 mm/s Max print width 105.7 mm Max print length 2000 mm Interfaces: RS232 C 1,200 up to 230,400 Baud / 8 Bit, USB 2.0 high speed slave for PC connection, Ethernet 10 / 100 Base T, LPD, IPv4, IPv6, RawIP printing, DHCP, HTTP, FTP, SMTP, SNMP, TIME, NTP, Zeroconf, SOAP-Webservice, Peripheral connection Options: External Reel Holder, Cutter (S4000), Perforator (P4000) Dimensions: 460 mm (D) x 288 mm (H) x 252 mm (W) Weight 10 kg
GLOBAL PART DESCRIPTION TT4030UK-MET-GY
Pack Cont. 1
Package Quantity per EA
Product Family TT4030, High volume printing
Product Group Thermal transfer printer
Type TT4030UK
Depth (D) 460mm
Height (H) 288mm
L x H x W 460 x 288 x 252mm
Label Height Max (metric) 2000mm
Label Height Min (metric) 4.00mm
Label Width Max (imperial) 4.33"
Label Width Max (metric) 110.00mm
Label Width Min (imperial) .16"
Label Width Min (metric) 4.00mm
Label Width min - max 4 - 110 mm
Length (L) 381.0mm
Print Method Thermal transfer
Width (W) 252mm
CSA Certified No
Interfaces RS232 C, USB 2.0, Ethernet 10/100 Base T
Material Metal (MET)
Max. Print Width 105.70mm
Operating Temperature - °C +4 °C to +40 °C
Print Head Type 300 dpi, flat type
Print Speed up to 300mm/s
Printer Memory 256MB RAM
Specifications
Supported Barcodes, Printer Standard, 2D
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL-File Number E311215
Dimensions W x H x D 252 mm x 288 mm x 460 mm
EAN / GTIN 5022660710964
Packaging 1 - Weight (kg) 9.98kg
Weight 10kg
ETIM 6.0 EC001672
UNSPSC Key 39131505
