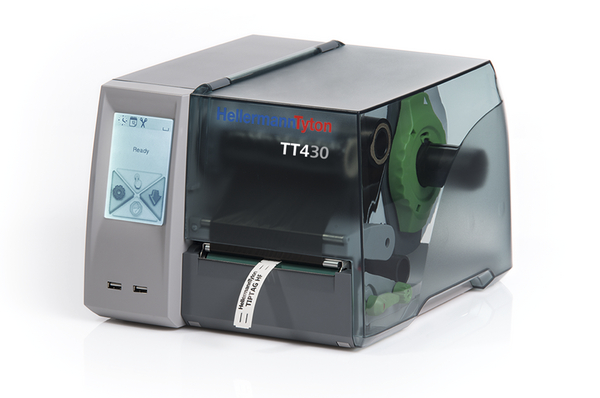

Thermal transfer printer : TT430
Thermal Transfer Printer 300 dpi, Article number: 556-00450
This product is not available anymore.
Alternative product available
Features
- Medium volume single sided printing
- Print on THTT DS, TLFX DS, TDRT DS and TULT DS ("Ladder" products)
- Print on THTT, TLFX, TDRT, TULT, and TCGT (Continuous tubing)
- Print on TAGHT, TAGLF, TAGDR, TAGUL, Tiptags
- Print on adhesive labels
- Uses standard ribbons
- Barcodes: standard and 2D
- Print speed up to 125 mm/s (30mm/s recommended for "Ladder" products and tubing)
- Adjustable label sensor
- Multiple language selection
- Windows drivers: 32/64 bit for Windows XP, Windows Vista, Windows 7 and Windows 8
- Options: Cutter (556-00452) and External Reel Holder (556-00451)
Certifications & Approvals
Application
The TT430 thermal transfer printer is perfect for printing on HellermannTyton materials such as self-adhesive labels, shrinkable tubing and identification tags. Thanks to its low weight and compact construction, the TT430 integrates seamlessly into any workstation. It is easy to use due to its intuitive touch display and clear status messages which can be shown in multiple languages. The optional cutter and perforator make this printer ideal for a wide range of applications. 300 dpi resolution ensures that barcodes, warning symbols, logos and text are as sharp as they can be.
TT430 is suitable for following markets and industries
More products in this product group
Thermal transfer printer >| Colour | Grey (GY) |
| Description | TT430 |
| Features and Benefits | Medium volume single sided printing Print speed up to 125 mm/s Max print width 116 mm Min print length 6 mm Max print length 1000 mm Interfaces: USB 2.0, Ethernet 10/100 Base T, LPD, RawIP-Printing, ftp-Printing, DHCP, HTTP, FTP, SMTP, SNMP, TIME, Zeroconf, mDNS, SOAP Options: Cutter and External Reel Holder Dimensions: 322 mm (D) x 187,5 mm (H) x 253 mm (W) Weight: 4 kg |
| Pack Cont. | 1pc. |
| Package Quantity per | Box |
| PART DESCRIPTION | TT430-GY |
| Product Family | TT430 |
| Product Group | Thermal transfer printer |
| Short Description | Thermal Transfer Printer 300 dpi |
| Type | TT430 |
| Depth (D) | 322mm |
| Height (H) | 189mm |
| L x H x W | 322 mm x 187,5 mm x 253mm |
| Label Height Max (metric) | 1000mm |
| Label Height Min (metric) | 6mm |
| Label Width Max (imperial) | 4.5" |
| Label Width Max (metric) | 105.6mm |
| Label Width Min (imperial) | .65" |
| Label Width Min (metric) | 5mm |
| Label Width min - max | 5 - 105.6 mm |
| Power Supply | 100-240V / 50-60Hz |
| Print Method | Thermal transfer printing |
| Width (W) | 253mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Interfaces | USB 2.0, Ethernet 10/100 Base T |
| Max. Print Width | 106mm |
| Maximum Print Length | 1000mm |
| Print Head Type | 300 dpi, flat type |
| Print Speed | up to 125 mm/s |
| Printer Memory | 64MB RAM |
| Specifications |
|
| Specifications | ANSI/NFPA 70 article 645, ANSI/NFPA 75, ANSI/UL 60950-1, ANSI/UL 60950-21, ANSI/UL 60950-22, ANSI/UL 60950-23, CE 2014/35/EU, EN 55022:2011-12, EN 55024:2011-09, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, FCC eCFR 47 FCC part 15 - subpart B, limit class A, ICES-033:2004 Issue 4, limit class A |
| Supported Barcodes, Printer | Standard and 2D |
| Supported Consumables | Print on TLFX DS, TULT DS and ShrinkTrak Print on TLFX, TULT, and TCGT continuous tubing Print on Tiptags Print on Adhesive Labels |
| UL Recognized (US and Canada) | No |
| Dimensions W x H x D | 253 mm x 189 mm x 322 mm |
| EAN / GTIN | 4031026458151 |
| Packaging 3 - Height (m) | 0.33m |
| Packaging 3 - Length (m) | 0.38m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0477m³ |
| Packaging 3 - Weight (kg) | 5.8kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.135m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 18 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.09m³ |
| Packaging 4 - Weight (kg) | 125.4kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 4kg |
| ETIM 6.0 | EC001672 |
| ETIM 7.0 Key | EC001672 |
| Printer/Reader variant | desktop |
