Thermal transfer printer : TT431

Thermal Transfer Printer 300 dpiArticle number: 556-00400


  • Small to medium volume single sided printing
  • Print on HellermannTyton cable markers and labels
  • Uses standard ribbons
  • Barcodes: standard and 2D
  • Print speed up to 150 mm/s
  • Adjustable label sensor
  • Multiple language selection
  • Windows drivers: 32/64 bit for Windows Vista, Windows 7, 8 and 10

Certifications & Approvals

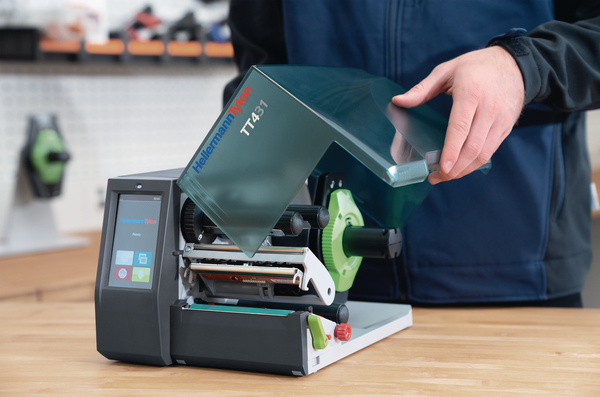

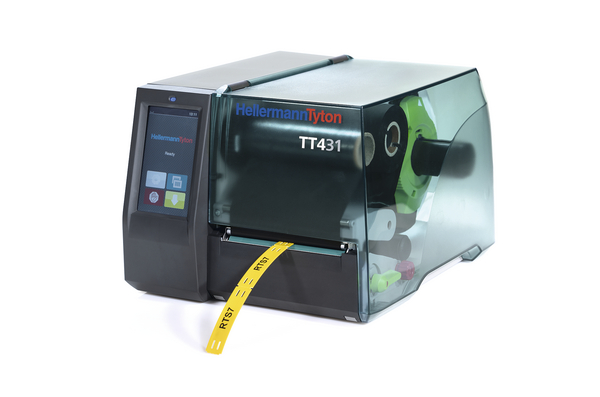

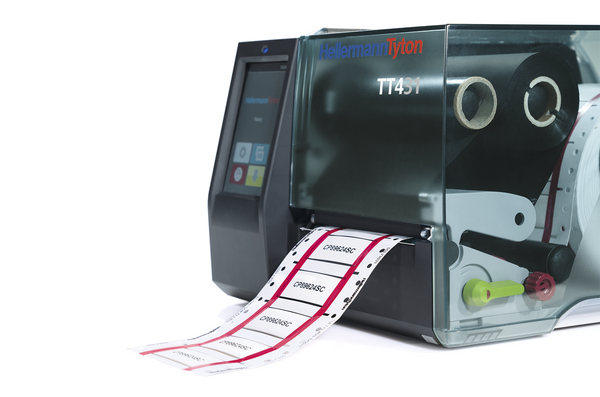

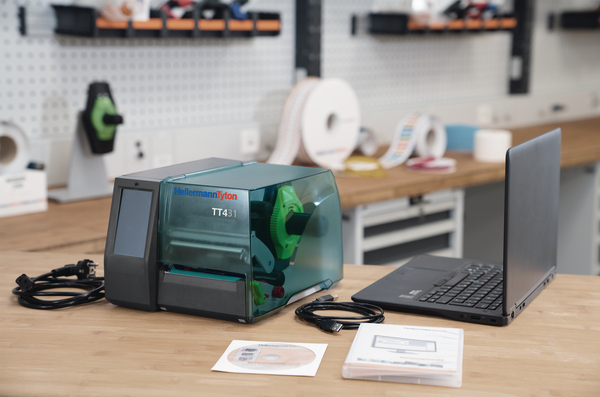

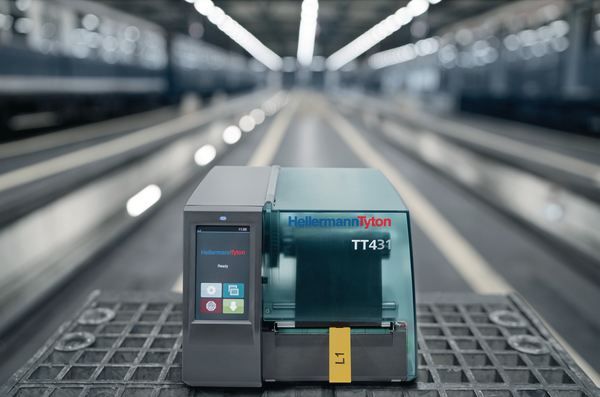

The TT431 thermal transfer printer is perfect for printing on HellermannTyton materials such as self-adhesive labels, shrinkable tubing and identification tags. Thanks to its low weight and compact construction, the TT431 integrates seamlessly into any workstation. It is easy to use due to its intuitive colour LCD touch display and clear status messages which can be shown in multiple languages. The optional cutter and perforator make this printer ideal for a wide range of applications. 300 dpi resolution ensures that barcodes, warning symbols, logos and text are as sharp as they can be.

Colour Grey (GY)
Features and Benefits • Print on ShrinkTrak • Print on Adhesive Labels • Print on Tiptags • Uses standard ribbons • Print head 300dpi • Barcodes: standard and 2D • Print speed up to 125mm/s • Max print width 106 mm •·Max print length 1000mm • Adjustable label sensor • 64MB RAM • Multiple language selection • Interfaces: Serial RS 232 C, USB2.0, Ethernet 10/100 Base T, LPD, RawIP-Printing, DHCP, HTTP, FTP, SMTP, SNMP, NTP, USB Master for keyboard and scanner • Windows drivers: 2000, 2003, XP, Vista • Options: cutter S3000 and perforator P4000 • Dimensions: 242mm (W) x 446mm (D) x 274mm (H) • Weight 9kg
Pack Cont. 1pc.
Package Quantity per Carton
Product Family TT431, Small to medium volume printing
Product Group Thermal transfer printer
Short Description Thermal Transfer Printer 300 dpi
Type TT431
Depth (D) 322mm
Height (H) 189mm
L x H x W 322 mm x 187,5 mm x 253mm
Label Height Max (metric) 4000mm
Label Height Min (metric) 5.00mm
Label Width Max (imperial) 4.16"
Label Width Max (metric) 105.7mm
Label Width Min (imperial) .39"
Label Width Min (metric) 10.00mm
Label Width min - max 10 - 105.7 mm
Print Method Thermal transfer printing
Width (W) 253mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Interfaces USB 2.0, Ethernet 10/100 Base T, RS232
Material Various (DIV)
Max. Print Width 105.70mm
Print Head Type 300 dpi, flat type
Print Speed up to 150 mm/s
Printer Memory 256MB RAM
Specifications 2014/35/EU, DIN EN 55024:2011-09, DIN EN 55024:2016-05, DIN EN 55032:2012-12, DIN EN 55032:2016-02, DIN EN 55032 rectification 1:2013-04, DIN EN 61000-6-2:2006-03, DIN EN 61000-6-2 rectification 1:2011-06, EN 55024:2011-09, EN 61000-6-2, FCC eCFR 47 FCC part 15 - subpart B, limit class A
Supported Barcodes, Printer Standard and 2D
Dimensions W x H x D 253 mm x 189 mm x 322 mm
EAN / GTIN-13 4031026613154
Packaging 3 - Height (m) 0.325m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 1
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0469
Packaging 3 - Weight (kg) 5.8kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.12m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 18
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.075
Packaging 4 - Weight (kg) 125.4kg
Packaging 4 - Width (m) 0.8m
Weight 4.0kg
ETIM 6.0 EC001672
ETIM 7.0 Key EC001672
Printer/Reader variant desktop
