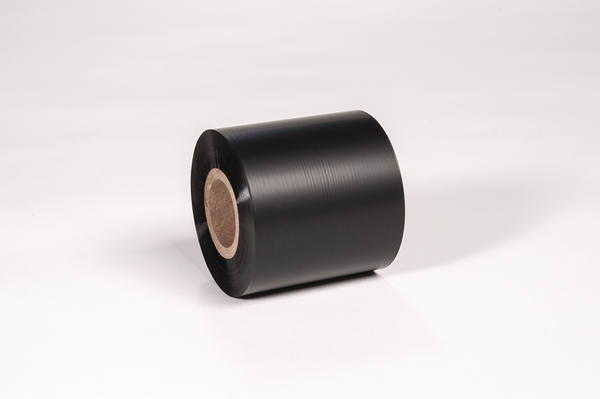

Thermal transfer ribbon, W=85.0mm, black, 300m
Art.-No. 556-00117 | TT932DOUT 85MM-PET-BK Details

  • Thermal transfer ribbons for highest quality and performance of printed labels
  • Ribbons are specifically designed to maximise print performance for the recommended material

Request your individual offer now

Application The thermal transfer print technology is based on heating up certain dots in the print head. This transfers the ink very precisely from the ribbon onto the surface of the printed material.
Colour Black (BK)
Material Polyester Film (PET)
Pack Cont. 1pc.
Package Content packed in pcs.
Product Family TT932:- Smudge Resistant
Product Group Thermal Printer Ribbons for adhesive labels
Short Description Ther mal Transfer Ribbon for Adhesive Labels 85 mm wide reel 300 m black
Type TT932DOUT 85MM
Variant Coloured ribbon
Inside Ø (ID) 25.4mm
Length (L) 300m
Print Method thermal transfer print
Recommended Material

323, 896

Thickness (T) 9.0µm
Thickness of Foil 4.5
Weight/Unit 0.07kg
Width (W) 85.0mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Melting Point starting from +84 °C
Operating Temperature +5 °C to +35 °C
ROHS compliant Yes
Shelf Life 5 years
Tensile Strength 200N/mm²
Country of Origin JP
Customs Number 96121010
Dimensions W x H x D 85.0 mm x
GTIN-13 / EAN 4031026209418
Packaging 1 - Height (m) 0.085m
Packaging 1 - Length (m) 0.085m
Packaging 1 - Qty 1
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00051
Packaging 1 - Weight (kg) 0.07kg
Packaging 1 - Width (m) 0.07m
Packaging 3 - Height (m) 0.24m
Packaging 3 - Length (m) 0.55m
Packaging 3 - Qty 150
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0515
Packaging 3 - Weight (kg) 11.0kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.105m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.061
Packaging 4 - Weight (kg) 197.0kg
Packaging 4 - Width (m) 0.8m
Reel Length 300m
Storage conditions Maximum 4 years after production date at +21°C and 50% relative humidity.
ETIM 7.0 Key EC000608
ETIM 8.0 Key EC000608
ETIM 9.0 Key EC001694
