Thermal Printer Ribbons for heatshrink : TTDTHOUT 100MM

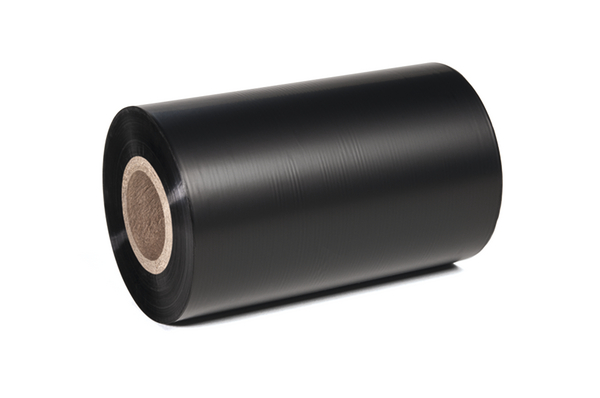

Ther mal Transfer Ribbon for Heatshrink 102 mm wide reel 300 m black, Article number: 556-00141

Features

  • Thermal transfer ribbons for high quality print results on heat shrink tubing and Tiptag identification tags
  • Ribbons are specifically designed to maximize print performance for the recommended material

Certifications & Approvals

Application

The TTDTHOUT ribbon consists of a special resin composition. In combination with our identification materials the printing is high resistant against high temperatures, scratches and chemicals. The thermal transfer print technology is based on heating up certain dots in the print head. This transfers the ink very precisely from the ribbon onto the surface of the printed material.

TTDTH:- Smudge, Scratch, Oil, Benzene, and Alcoholic Solvent Resistant is suitable for following markets and industries

Colour Black (BK)
Pack Cont. 300m
Package Quantity per pcs.
PART DESCRIPTION TTDTHOUT 100MM-PET-BK
Product Family TTDTH:- Smudge, Scratch, Oil, Benzene, and Alcoholic Solvent Resistant
Product Group Thermal Printer Ribbons for heatshrink
Short Description Ther mal Transfer Ribbon for Heatshrink 102 mm wide reel 300 m black
Type TTDTHOUT100MM
Variant Coloured ribbon
Length (L) 300.0m
Print Method Thermal transfer
Recommended Material TCGT/TULT(DS)/TLFX(DS)/TDRT(DS)/TLFD DS/TIPTAG
Width (W) 100.0mm
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
Material Polyester (PET)
Operating Temperature - °C -20 °C to +60 °C
Specifications
Dimensions W x H x D 100.0 mm x
EAN / GTIN 4031026253633
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.16m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00224
Packaging 1 - Weight (kg) 0.31kg
Packaging 1 - Width (m) 0.14m
Reel Length 300m
Reel Length (imperial) 984ft
Weight 0.31kg
ETIM 6.0 EC001694
ETIM 7.0 Key EC001694
UNSPSC Key 44103124
