Thermal Printer Ribbons for heatshrink : TTRW 30MM

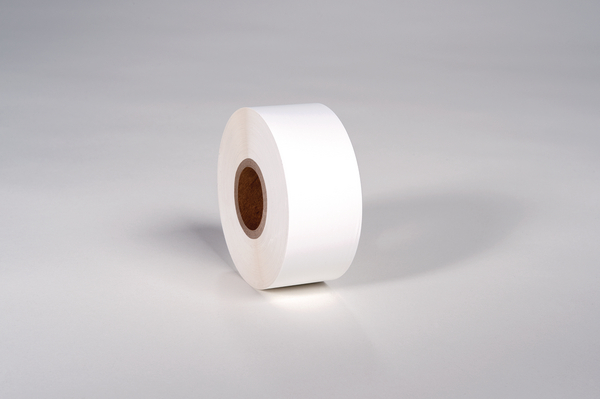

Ribbon 30 mm wide, reel 300 m white, Article number: 556-00125

Features

  • Thermal transfer ribbons for highest quality and performance of printed markers
  • Ribbons are specifically designed to maximise print performance for the recommended material

Certifications & Approvals

Application

The thermal transfer print technology is based on heating up certain dots in the print head. This transfers the ink very precisely from the ribbon onto the surface of the printed material.

Colour White (WH)
Features and Benefits The highest standard of mark permanence and clarity is achieved when printing on white or yellow heatshrink using either TTDTHOUT 100MM or TTRC+ 100MM. TTDTHOUT passes the following standards; MIL-STD-202G (method 215J) on supplied and recovered markers, BS 4G 198-3 (type 11A), and Def. Stan. 59-97 Issue 3 Type 2a on recovered markers. TTRC+ passes the following standards; MIL-STD-202G (method 215J), BS 4G 198-3 (type 11A), and Def. Stan. 59-97 Issue 3 Type 2a on recovered markers. Use TT822OUT8 for printing on black heatshrink. TT822OUT8 passes MIL-STD-202G (method 215J) on recovered markers. Should you need the best contrast on a black heatshrink please use TTRW. TTRW passes MIL-STD-202G (method 215J) on recovered markers.
Pack Cont. 300m
Package Quantity per pcs.
PART DESCRIPTION TTRW 30MM-PET-WH
Product Family TTRW:- Limited Smudge Resistance
Product Group Thermal Printer Ribbons for heatshrink
Short Description Ribbon 30 mm wide, reel 300 m white
Type TTRWX30MM
Variant Coloured ribbon
Length (L) 300m
Recommended Material TCGT/TULT(DS)
Width (W) 30mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyester (PET)
Specifications
Dimensions W x H x D 30 mm x
EAN / GTIN 4031026216799
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.07m
Packaging 1 - Qty 1
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00015
Packaging 1 - Weight (kg) 0.124kg
Packaging 1 - Width (m) 0.07m
Reel Length 300m
Weight 0.124kg
ETIM 6.0 EC001694
ETIM 7.0 Key EC000680
