12/07/2025

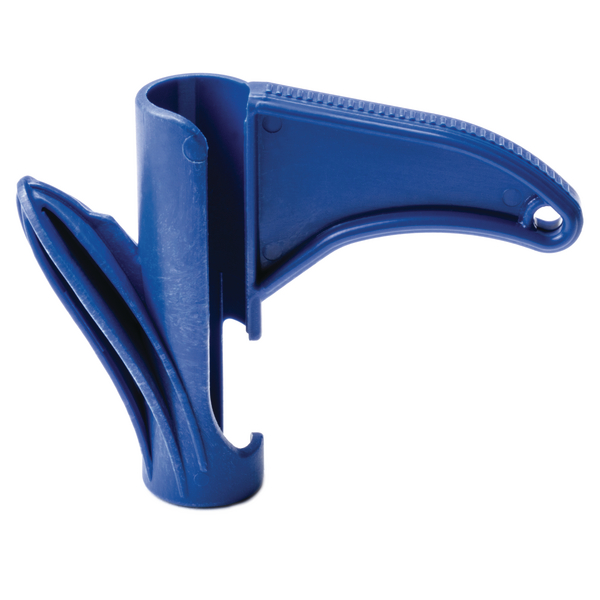

Accessory, Helawrap, blue, 10pcs. (HAT8)
Art.-No. 161-60001 | HAT8-PA66-BU |

Copied
Tool is designed for post-installation applications, allowing for unplanned engineering changes to be corrected with ease.
Applicator tools HAT are available for every Helawrap cover size.
Insert one or more cables into the insertion slot of the applicator tool.
Place the HAT applicator tool in one end of the Helawrap cable cover.
Simply slide the HAT applicator tool through the Helawrap cover.

    • Bundle cable rapidly and effortlessly
    • Glides smoothly and securely through cover
    • Easy insertion of cable
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The HAT application tools are used with Helawrap HWPP, HWPAV0 and HWPPMC cable covers to bundle and protect cables rapidly and efficiently. There is a specially designed HAT application tool for each size Helawarp cable cover.
    Application Method Place cables in applicator, then zip through cover sleeve.
    Colour Blue (BU)
    Local order number HAT8PACK10
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION HAT8-PA66-BU
    Package Content 10pcs.
    Package Content packed in Pack
    Product Family HAT
    Product Group Applicator Tool
    Short Description Applicator tool for professional 8mm cable cover
    Type HAT8
    UV-Stabilised No
    Weight/Unit 0.003691kg
    Nominal ⌀ 8mm
    Nominal ⌀ (imperial) 0.31"
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660178313
    Packaging 1 - Height (m) 0.015m
    Packaging 1 - Length (m) 0.21m
    Packaging 1 - Qty 10
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00039375m³
    Packaging 1 - Weight (kg) 0.036915kg
    Packaging 1 - Width (m) 0.125m
    ETIM 7.0 Key EC001177
    ETIM 8.0 Key EC001177
    ETIM 9.0 Key EC001177
    UNSPSC Key 39131604
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
