Metal-Content Spiral Binding : SBPEMC9

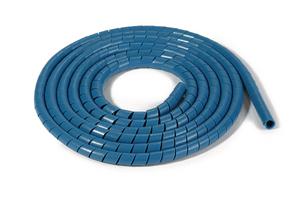

Metal-Content Spiral Binding PE/SS 30m blue ø 9mm, Article number: 161-46200
Features
- High metal-content for reliable detection with standard detection equipment
- Stainless steel preserves resistance to corrosion
- Blue colour for enhanced visibility
- Ideal solution for bundling and protecting cables and hoses
- Highly flexible
- Suitable for retro-fitting
- Branching off cable at any point
Certifications & Approvals
Application
SBPEMC is designed for applications in food-processing plants and machines.
SBPEMC is suitable for following markets and industries
More products in this product group
Metal-Content Spiral Binding >| Application 2 | Available in flame retardant PA6 (SBPAV0) and high performance PTFE (SBPTFE). |
| Colour | Blue (BU) |
| Features and Benefits | A versatile way of protecting and tidying wires, cables and tubes, wires can easily be broken out at any point. Available in flame retardant polythene. |
| Pack Cont. | 30m |
| Package Quantity per | Coil |
| PART DESCRIPTION | SBPEMC9-PE/SS-BU |
| Product Family | SBPEMC |
| Product Group | Metal-Content Spiral Binding |
| Short Description | Metal-Content Spiral Binding PE/SS 30m blue ø 9mm |
| Type | 161-46200 |
| Variant | Spiral Binding |
|
|
|
| Bundle ∅ max. | 100mm |
| Bundle ∅ min. | 10mm |
| Bundlediamter Range ETIM (Braided Sleeving) | 10-100 |
| Diameter (D) | 9mm |
| Nominal ∅ | 9mm |
| Nominal ∅ (imperial) | 3/8" |
| Pitch (P) | 12.5mm |
| Wall (WT) | 1.4mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Halogenfree | Yes |
| Hazardous good | No |
| Intermittent Operating Temperature | +120°C |
| Material | Polyethylene (PE), Stainless Steel (SS) |
| Operating Temperature - °C | -60 °C to +80 °C, intermittent +120 °C |
| Specifications |
|
| UV-Resistant (Yes/No) | Yes |
|
|
|
| EAN / GTIN | 5022660685330 |
| Packaging 3 - Height (m) | 0.119m |
| Packaging 3 - Length (m) | 0.37m |
| Packaging 3 - Qty | 30 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0128m³ |
| Packaging 3 - Weight (kg) | 0.71kg |
| Packaging 3 - Width (m) | 0.29m |
| Packaging 4 - Height (m) | 0.144m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 1920 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.138m³ |
| Packaging 4 - Weight (kg) | 66.44kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 30m |
| ETIM 6.0 | EC002604 |
| ETIM 7.0 Key | EC002604 |
