14/04/2024

SBPPHDR
Art.-No. 162-30000 | SBPPHDR10-PP-BK Details

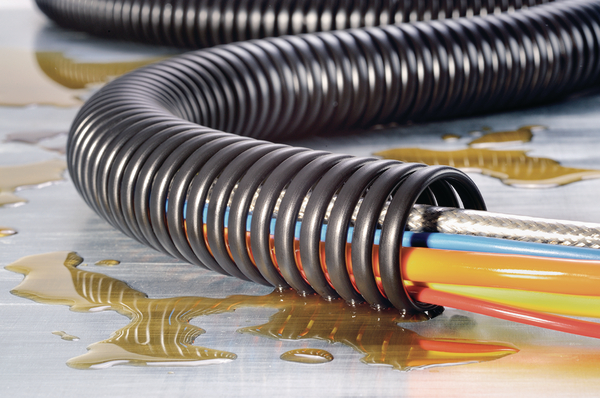

  • For organising and protecting cables and hoses
  • Heavy-walled and very robust
  • Excellent protection from mechanical stress
  • Very high abrasion resistance
  • Very good resistance to oils
  • Available in diameters up to 50 mm
  • Ideal for larger cable bundles
Show more

Request your individual offer now

Application Spiral binding is used to route and bind cables that need high mechanical protection, for instance in the automotive industry as well as in control panels and cabinets. It is also used in electrical installation, where safety is a primary consideration. Spiral binding provides a tidy solution for many applications.
Colour Black (BK)
Material Polypropylene (PP)
Pack Cont. 1m
Package Content packed in EA

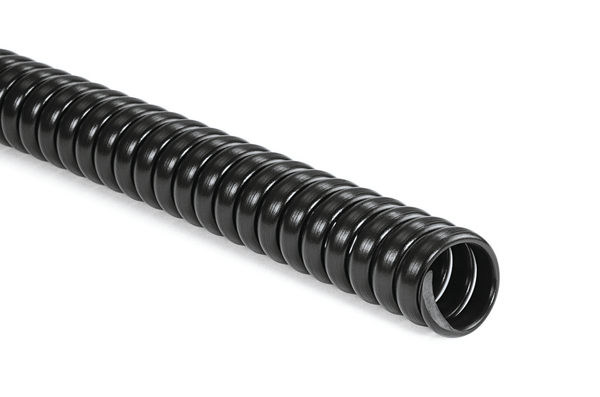

PART DESCRIPTION SBPPHDR10-PP-BK
Product Family SBPPHDR
Product Group PP High Abrasion-resistant Narrow Pitch Spiral Binding
Variant Spiral Binding
Bundle Diameter max (metric) 14mm
Bundle ∅ 10-14mm
Bundle ∅ min. 10mm
Diameter (D) 10mm
Length (L) 1m
Nominal ∅ 10mm

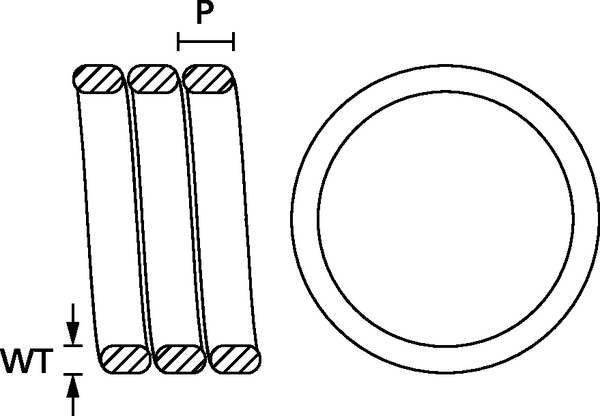

Pitch (P) 5.0mm
Wall (WT) 2.0mm
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -30 °C to +100 °C
Specifications
Country of Origin GB
GTIN-13 / EAN 5022660175954
ETIM 7.0 Key EC002604
ETIM 8.0 Key EC002604
ETIM 9.0 Key EC002604
