RapidNet 4 Port Category 6 : RN04UC6-CACAXX-10.0M

Cassette to Cassette, Article number: 859-05415

Features

  • Exceeds Category 6 performance standards
  • 24 Ports in 1U
  • Factory pre-terminated and tested
  • Reduce installation times by up to 85%
  • Ideal solution for cabinet to cabinet installations
  • Backward compatible with Category 5e, Category 5 and voice

Application

RapidNet can reduce installation time by up to 85% and is designed to meet the exacting standards of mission critical installations where network down time and poor systems performance is not an option. The 4 core bundled cable have been specially designed to eliminate potential alien cross talk issues and uses a clear tape to reduce the bundle, ensuring a high quality, well managed installation.

Application 2 The RapidNet CAT6 solutions are designed to support any voice and data cabling system that is capable of running over their respective systems and are backwards compatible with existing CAT5E, CAT5 and voice network infrastructure.
Colour Violet (VT)
Connector Type RJ45 UTP

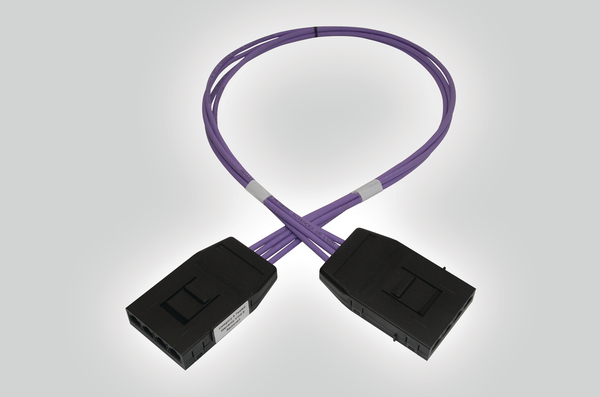

Description The RapidNet 4 Port Cassette to Cassette is pre-terminated with 4 RJ45 ports in each cassette, with 6 cassettes fitting into a standard 4 Port RapidNet Patch Panel. A fully loaded panel presents 24 ports in 1U of space. The 4 Port Cassette to Cassette option is specifically designed for inter-cabinet installations that are common in data centres and comms rooms. The RapidNet 4 Port Cassette to Cassette solution also lends itself to the office and call centre environment with the 4 ports delivering voice and data to 2 desks per loom.
Features and Benefits Backward compatible with C5E and Voice
Pack Cont. 10.0m
PART DESCRIPTION RN04UC6-CACAXX-10.0M
Performance Category Category 6 (Class E)
Port count 4
Product Family Cassette to Cassette
Product Group RapidNet 4 Port Category 6
Technical Description The RapidNet Cassette has been designed to provide a jack life of a minimum of 1000 insertions. The cassette is manufactured with a simple push clip mechanism and polarising clips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 6 standards. All RapidNet Category 6 cables are made with LS0H material, complying with the latest European fire ratings. NB. Part Number is given for a 10m loom as an example. Lengths are available from 5m to 90m.
Type RN04UC6-CACAXX-10.0M
Depth (D) 116mm
Height (H) 28mm
Length (L) 10.0m
Width (W) 70mm
ELV compliant Dir. Art. 4 (2) YES
Dimensions W x H x D 70 mm x 28 mm x 116 mm
EAN / GTIN 5022660936333
Packaging 1 - Qty 1
Packaging 1 - Type Reel
Packaging 2 - Qty 0
Packaging 3 - Qty 0
Packaging 4 - Qty 0
Weight 2.9kg
