RapidNet 6 Port Category 6 : RN06UC6-CAPOXX-10.0M

Cassette to Pod, Article number: 859-00260

Features

  • Exceeds Category 6 performance standards
  • 24 Ports in 1U
  • Factory pre-terminated and tested
  • Can be used as a 'to the desk' installation
  • Provides 6 high density Euro Outlets per pod
  • Fits into standard floor boxes
  • Backward compatible with Category 5e, Category 5 and voice

Application

RapidNet can reduce installation time by up to 85% and is designed to meet the exacting standards of mission critical installations where network down time and poor systems performance is not an option. The RapidNet cassette to pod option is designed to support any to the desk installation in various commercial environments including offices, trading floors and schools. The 6 core bundled cable have been specially designed to eliminate potential alien cross talk issues and uses a clear tape to reduce the bundle, ensuring a high quality, well managed installation. Each pod is manufactured with either 2 Cat6 or 2 Cat6 triple Euro Outlets, providing a maximum of 6 ports per pod.

Application 2 The RapidNet Cat6 solutions are designed to support any voice and data cabling system that is capable of running over their respective systems and are backwards compatible with existing Cat5e, Cat5 and voice network infrastructure.
Colour Violet (VT)
Connector Type RJ45 UTP

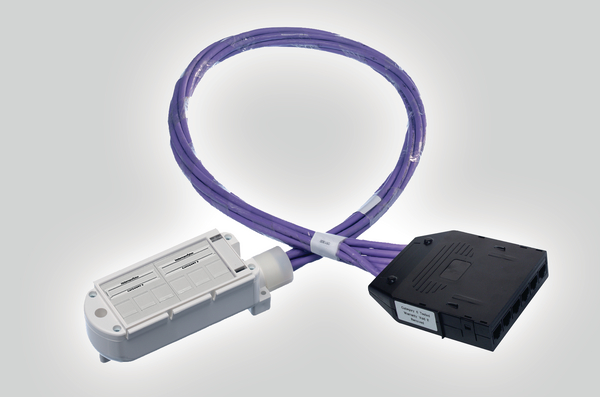

Description The RapidNet 6 Port Cassette to Pod is pre-terminated with 6 RJ45 ports in the cassette at one end and a 6 port pod at the other end. The RapidNet 6 Port Cassette to Pod option presents 24 RJ45 ports in 1U of space (6 port cassette), when using a standard RapidNet Patch Panel. The Cassette to Pod option provides an ideal ‘to the desk’ solution for offices, schools and call centres.
Features and Benefits Backward compatible with C5E and C5
Pack Cont. 10.0m
PART DESCRIPTION RN06UC6-CAPOXX-10.0M
Performance Category Category 6 (Class E)
Port count 6
Product Family Cassette to Pod
Product Group RapidNet 6 Port Category 6
Technical Description The RapidNet Pod is manufactured with 6 shuttered Euro outlets and is compatible with most floor boxes. The rounded edges alleviate snagging during the pulling and fixing stages of installation. For protection during delivery, the pod is inserted within the cable reel and up to 5 metres of the cable can be protected by a black copex sleeve (on request). The RapidNet Cassette has been designed to provide a jack life of a minimum of 1000 insertions. The cassette is manufactured with a simple push clip mechanism and polarising clips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 6 standards. All RapidNet Category 6 cables are made with LS0H material, complying with the latest European fire ratings. NB. Part Number is given for a 10m loom as an example. Lengths are available from 5m to 90m.
Type RN06UC6-CAPOXX-10M

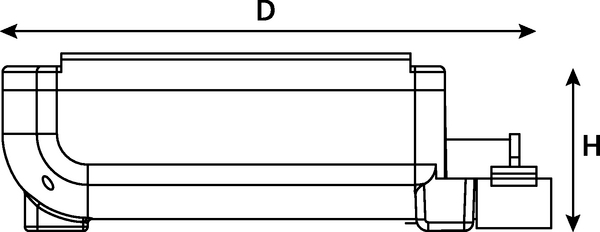

Depth (D) 184mm
Height (H) 59mm
Length (L) 10.0m

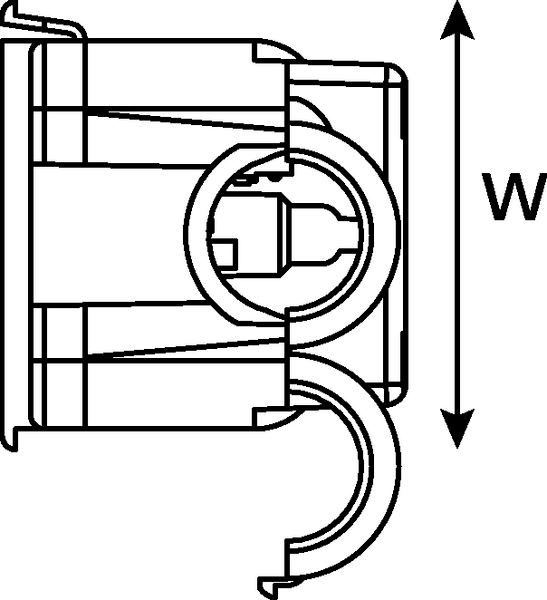

Width (W) 61mm
Dimensions W x H x D 61 mm x 59 mm x 184 mm
EAN / GTIN 5022660890154
