RapidNet Floor Boxes
Art.-No. 859-35050 | RNSFB-1 |

Copied

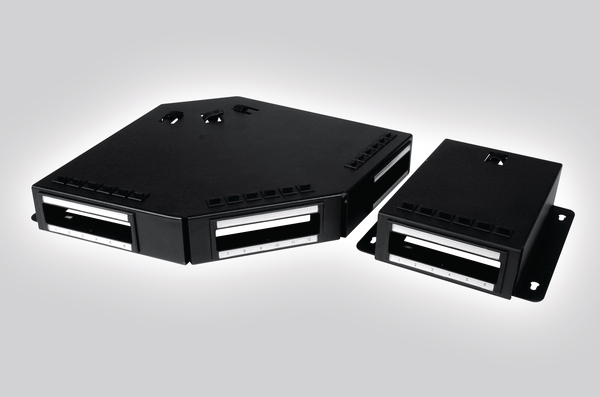

RapidNet Floor Boxes (triple and single shown)

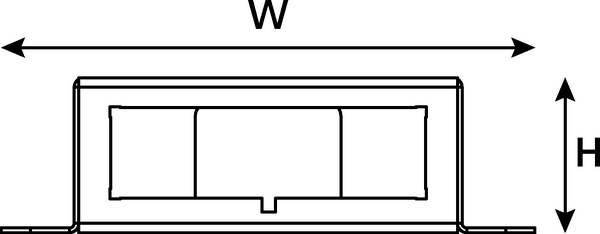

RapidNet Sub Floor Box (front view)

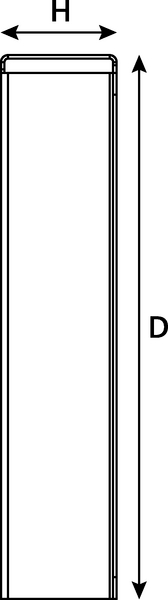

RapidNet Sub Floor Box (side view)

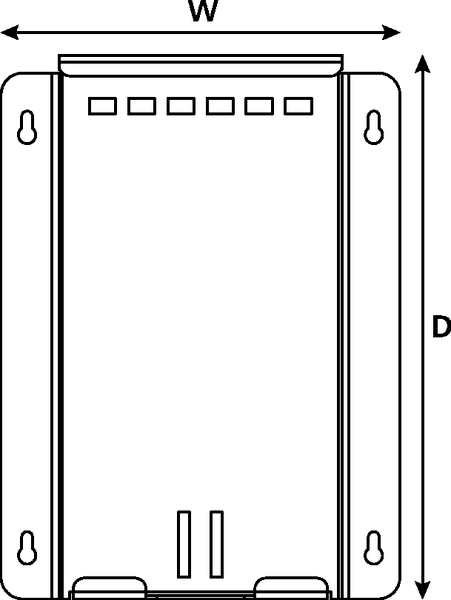

RapidNet Sub Floor Box (top view)

    • Holds 1-3 cassettes
    • Can be used under the floor
    • Can be secured to the floor via several fixing points
    • Dual labelling fields
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Description The RapidNet Floor Box is designed to house the RapidNet Cassette away from the comms cabinet and provides a good 'to the desk' solution.
    Available in a triple cassette or single cassette version, the RapidNet floor box can take up to three RapidNet Cassettes.
    Local order number RNSFB-1
    PART DESCRIPTION RNSFB-1
    Product Family RapidNet Floor Boxes
    Product Group RapidNet Accessories
    Short Description RapidNet Floor Boxes
    Technical Description The RapidNet Floor Box can be fixed to the floor or under the floor using several fixing points.
    The RapidNet Floor Box is manufactured from powder coated mild steel and has dual magnified labelling fields for easy port identification.
    Type RNSFB-1
    Depth (D) 200mm
    Height (H) 53mm
    Width (W) 183mm
    ELV compliant Dir. Art. 4 (2) YES
    Country of Origin GB
    Customs Number 85389099
    Dimensions W x H x D 183 mm x 53 mm x 200 mm
    GTIN-13 / EAN 5022660963209
    Packaging 1 - Qty 1
    Packaging 1 - Weight (kg) 2kg
    Packaging 2 - Qty 0
    Packaging 3 - Qty 0
    Packaging 4 - Qty 0
