21/05/2024

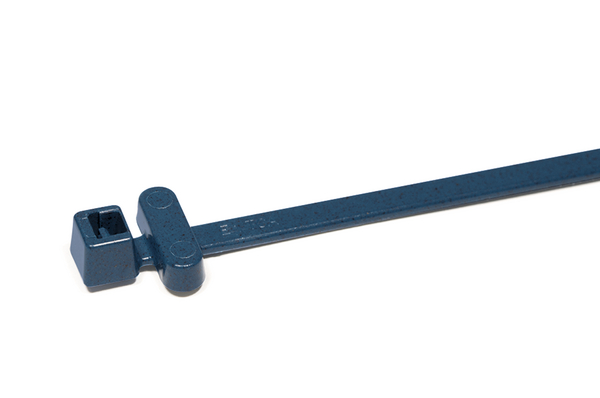

RFID cable tie, 13.56 MHz (HF), 200x4.6mm, Ø1.5-50mm, blue, 100pcs.
Art.-No. 111-01676 | MCTRFIDCHA-PA66MD-BU Details

  • Complete with either a Low Frequency (LF) or High Frequency (HF) RFID Transponder for Nylon ties.
  • Metal Content Version (MC) is supplied in Blue and is suitable for food industry applications.

Request your individual offer now

Application HellermannTyton has developed a range of nylon and metal identification cable ties with RFID tag to enable users to easily fix the RFID tag to equipment that needs to carry a serial number for tracking and identification purposes. The products are provided to clients in the following areas: utility companies, healthcare, food processing, agriculture, hire shops and companies carrying out servicing and calibration.
Application Tool EVOcut, EVO7i, RFID-HS9BT-HF, RFID-DT22-HF, RFID - IOS READER, RFID-PNR-HF-R
Colour Blue (BU)
Fixation Method None
Identification Plate Position none
Local order number MCTRFIDCHA.NL3P
Material Polyamide 6.6, metal detectable (PA66MD)
PART DESCRIPTION MCTRFIDCHA-PA66MD-BU
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family MCTRFID – High frequency (HF), blank
Product Group Detectable cable ties with integrated RFID transponder
Releasable Closure (Yes/No) No
Short Description RFID cable tie 200x4.6 mm, 13.56 MHz (HF), detectable, blue
Tie Closure plastic pawl
Type MCTRFIDCHA
Variant Inside Serrated
Bundle Diameter max (metric) 50mm
Bundle ∅ 1.5-50mm
Bundle ∅ min. 1.5mm
Frequency 13.56 MHz (HF)
Length (L) 200mm
Memory User memory: 640 bits
Min.Tensile Strength 225N
Weight/Unit 0.001897kg
Width (W) 4.6mm
Data Retention Up to 60 years
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -25 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications Article 41 of Directive 2014/34/EU
Write endurance 100000 cycles
Country of Origin GB
Customs Number 85235910
GTIN-13 / EAN 5022660344794
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.27m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00132
Packaging 1 - Weight (kg) 0.189701kg
Packaging 1 - Width (m) 0.14m
Storage Temperature -40 °C to +85 °C
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
