RFID Readers RFID-DT22-HF

RFID Desktop Reader, Article number: 556-00702

Features

  • RFID desktop reader
  • High frequency (HF – 13.56 MHz)
  • For reading and writing of data
  • USB, HID interface
  • Operator convenience
  • Lightweight and handy design

Certifications & Approvals

Application

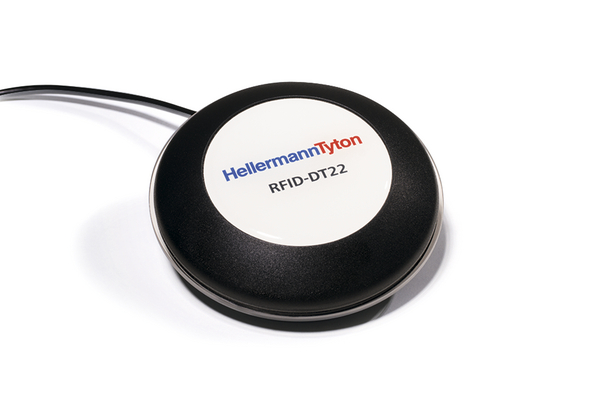

The RFID-DT22 desktop reader for stationary use has been designed to read and write from/to high frequency (HF 13.56 MHz) transponders fitted to HellermannTyton RFID cable ties and accessories. The reader acts as an interface to computer systems and databases. Radio waves transmit the data from the transponder to the reader, so that contactless reading of information is possible. RFID system solutions can make a significant contribution to improving the process reliability and quality in a variety of industries.

Colour Black (BK)
Connection for external antenna No
Description Short (BMEcat) (max. 150 characters) RFID desktop reader (13.56 MHz) 110x110x30 mm
Max. transmission range 120mm
Pack Cont. 1pc.
Package Quantity per Box
PART DESCRIPTION RFID-DT22-HF-ABS-BK
Product Family RFID Desktop Reader
Product Group RFID Readers
Transmission rate reading max. 848Kbps
Transmission rate writing max. 848Kbps
Type of electric connection Others
Type of voltage (input voltage) DC
Frequency 13.56 MHz (HF)
Height (H) 30.0mm
Length (L) 110.0mm
Width (W) 110.0mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Interfaces USB, HID
IP-Rating IP51
Material Acrylonitrile Butadiene Styrene (ABS)
Operating Temperature - °C -25 °C to +60 °C
Radio protocol ISO 15693, ISO 14443A
Specifications
Dimensions W x H x D 110.0 mm x 30.0 mm x
EAN / GTIN 4031026563671
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.203m
Packaging 1 - Qty 1
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00138
Packaging 1 - Weight (kg) 0.2kg
Packaging 1 - Width (m) 0.136m
Weight 0.2kg
ETIM 6.0 EC002998
ETIM 7.0 Key EC002998
