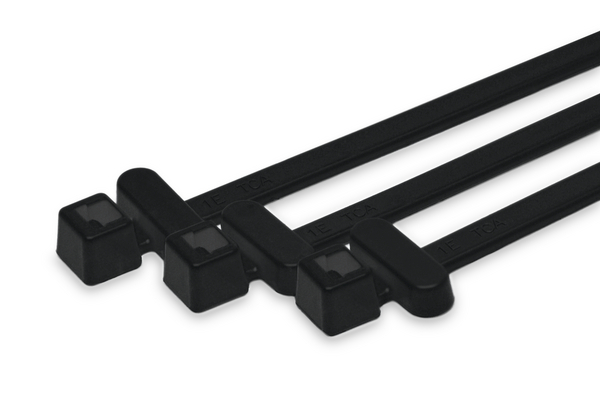

Cable ties with integrated RFID transponder T50RFIDCHA

T50RFID – High Frequency (HF), Article number: 111-01591

Features

  • Flexible, contactless data communication
  • Clear identification of objects through unique numbering
  • Faster data management compared to paper solution
  • More accurate documentation processes – prevention of human errors
  • Robust and resistant to harsh environments and cleaning processes
  • High frequency (HF – 13.56 MHz)
  • Rewritable
  • Special colours are possible on request

Certifications & Approvals

Application

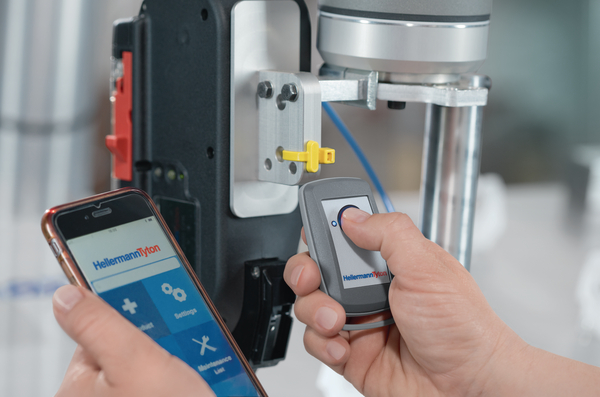

RFID cable ties provide an innovative solution for clear and rapid product identification. The nylon cable ties are equipped with an RFID transponder and therefore combine the numerous advantages of a regular cable tie with RFID technology. The ties are especially suited for securing, serialisation, tracking and identification of products in the areas of resource management, electrical inspection, inventory, distribution and rental services as well as for easy management of maintenance and repair routines.

T50RFID – High Frequency (HF) is suitable for following markets and industries

Application Tool EVO7, RFID-HS9BT-HF, RFID-DT22-HF, RFID - IOS READER, RFID-PNR-HF-R
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) RFID cable tie 200x4.6 mm, 13.56 MHz (HF), black
Fixation Method None
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
PART DESCRIPTION T50RFIDCHA-PA66-BK
Product Family T50RFID – High Frequency (HF)
Product Group Cable ties with integrated RFID transponder
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50RFIDCHA.NB3P
Variant Inside Serrated
Bundle ∅ max. 50mm
Bundle ∅ min. 1.5mm
Frequency 13.56 MHz (HF)
Length (L) 200mm
Min.Tensile Strength 225N
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Idle Temperature -40 °C to +85 °C
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -25 °C to +85 °C
Specifications
Specifications Article 41 of Directive 2014/34/EU, EN 50303:2000, EN 60079-0:2012, EN 60079-11:2012
Dimensions W x H x D 4.6 mm x
EAN / GTIN 5022660343568
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.325m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00148
Packaging 1 - Weight (kg) 0.1705kg
Packaging 1 - Width (m) 0.152m
Weight 0.1705kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
