RFID cable tie, detectable, 125 kHz (LF), 200x4.6mm, Ø1.5-50mm, yellow, 100pcs.
Art.-No. 111-01638 | T50RFIDCLA-PA66-YE Details

  • Flexible, contactless data communication
  • Clear identification of objects through unique numbering
  • Faster data management compared to paper solution
  • More accurate documentation processes – prevention of human errors
  • Robust and resistant to harsh environments and cleaning processes
  • Low frequency (LF – 125 kHz) - Read only
  • High frequency (HF – 13.56 MHz) - Rewritable
Show more

Request your individual offer now

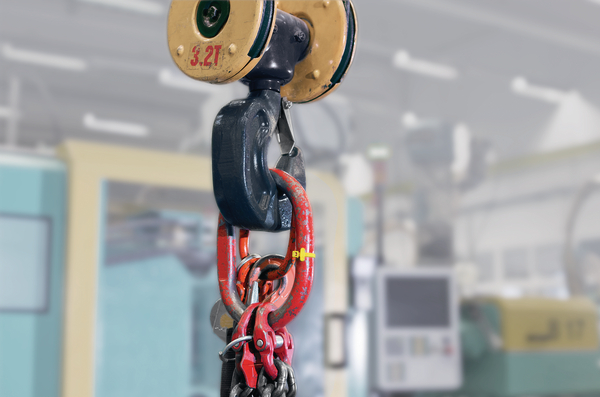

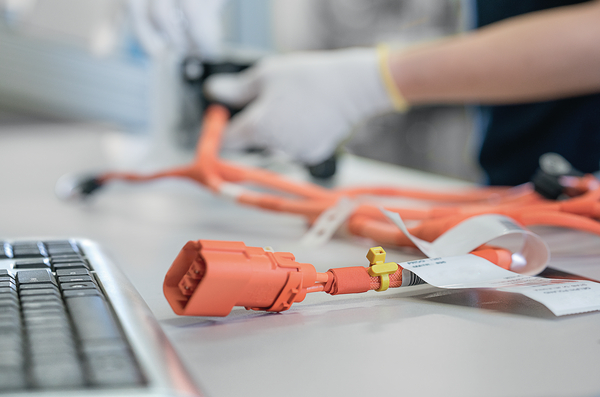

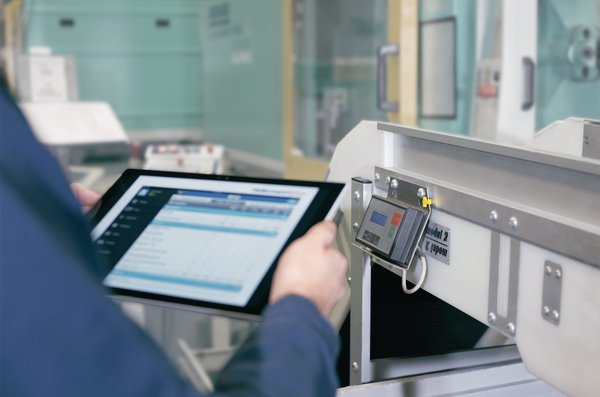

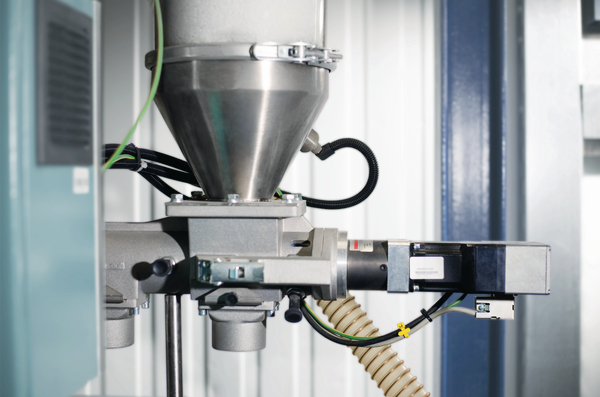

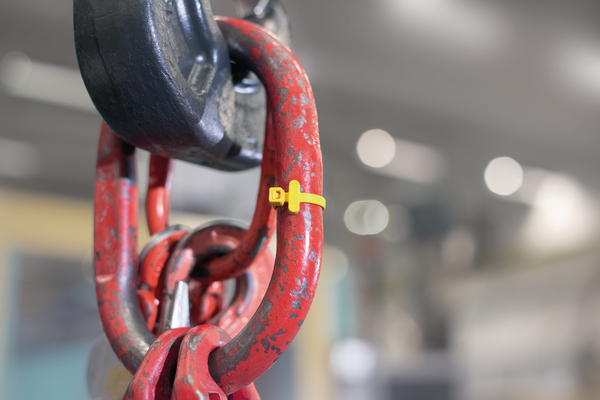

Application RFID cable ties provide an innovative solution for clear and rapid product identification. The nylon cable ties are equipped with an RFID transponder and therefore combine the numerous advantages of a regular cable tie with RFID technology. The ties are especially suited for securing, serialisation, tracking and identification of products in the areas of resource management, electrical inspection, inventory, distribution and rental services as well as for easy management of maintenance and repair routines.

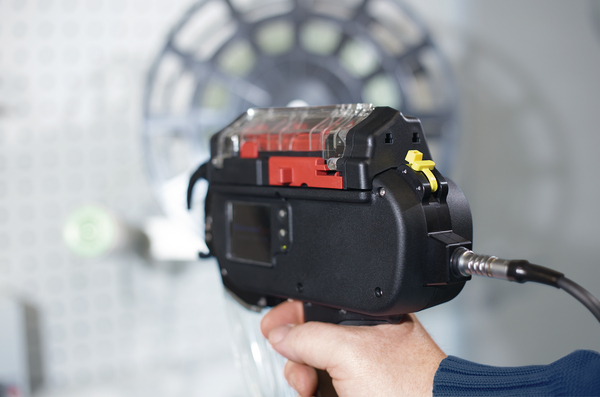

Application Tool EVOcut, EVO7i, RFID-HS9BT-LF
Colour Yellow (YE)
Description Low Frequency (LF)
Fixation Method None
Identification Plate Position none
Key product features detectable
Local order number T50RFIDCLA.NY3P
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION T50RFIDCLA-PA66-YE
Product Family T50RFID – Low frequency (LF), blank
Product Group Cable ties with integrated RFID transponder
Releasable Closure (Yes/No) No
Short Description Cable Tie complete with integrated RFID transponder 125kHz, 200x4.6 mm yellow
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 50mm
Bundle ∅ 1.5-50mm
Bundle ∅ min. 1.5mm
Frequency 125 kHz (LF)
Length (L) 200mm
Memory User memory: 32 bits
Min.Tensile Strength 225N
Weight/Unit 0.00175kg
Width (W) 4.6mm
Data Retention Up to 60 years
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Country of Origin GB
Customs Number 85235910
GTIN-13 / EAN 5022660344473
Packaging 1 - Height (m) 0.032m
Packaging 1 - Length (m) 0.325m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00158
Packaging 1 - Weight (kg) 0.175001kg
Packaging 1 - Width (m) 0.152m
Storage Temperature -40 °C to +85 °C
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
